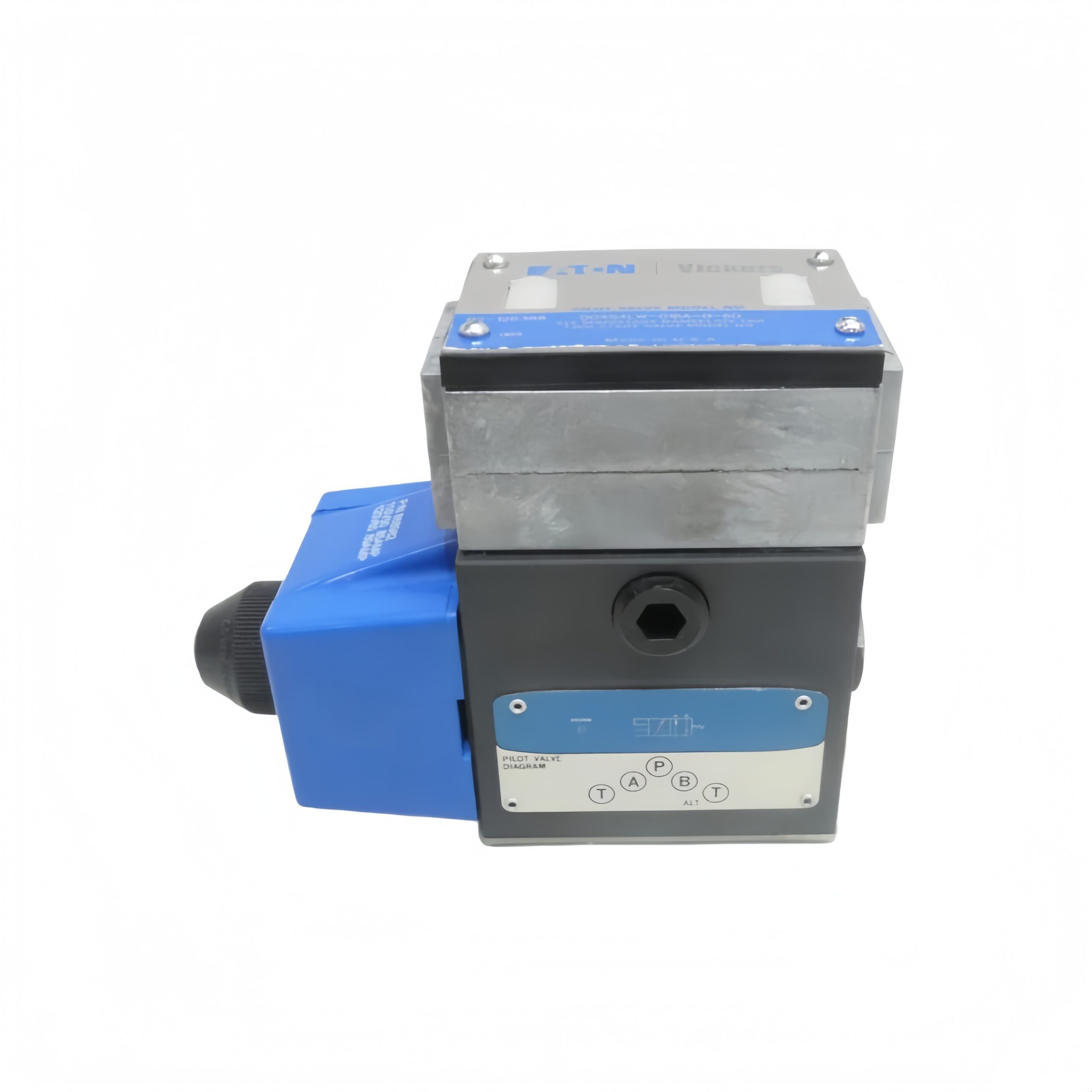

Vickers DG4S4LW-016A-B-60 Directional Control Valve
Description:
The Vickers DG4S4LW-016A-B-60 is a solenoid-operated hydraulic directional control valve designed for reliable flow switching in industrial hydraulic systems. It belongs to the Vickers DG4S4 series and features a subplate/manifold mounting design compliant with ISO4401-05 / NFPA D05 standards. This valve is widely used in machine tools, hydraulic presses, marine systems, and industrial automation equipment requiring precise directional control and stable performance.
share:
Vickers DG4S4LW-016A-B-60 Directional Control Valve
| Parameter | Specification |
|---|---|
| Product Model | DG4S4LW-016A-B-60 |
| Product Type | Directional Control Valve |
| Brand | Vickers by Danfoss |
| Valve Operation | Solenoid Operated |
| Design Series | 60 Series |
| Mounting Type | Subplate / Manifold Mounted |
| Interface Standard | ISO4401-05 / NFPA D05 |
| Valve Configuration | 4-Way Directional Valve |
| Spool Type | Spool 6 |
| Spring Arrangement | Spring Centered, Three Position |
| Seal Material | Buna-N |
| Stage | Single Stage |
| Indicator Light | Yes |
| Pressure Rating | Up to 250 bar / 3600 PSI |
| Flow Capacity | Up to 95 L/min (25 GPM) |
| Coil Voltage | 110V AC 50Hz / 120V AC 60Hz |
| Fluid Compatibility | Petroleum-Based Hydraulic Oils |
| Response Time | 20–40 ms |
| Working Temperature | -20°C to +50°C |
| Tank Port Pressure | 70 bar / 1000 PSI |
| Application | Industrial Hydraulic Systems |
