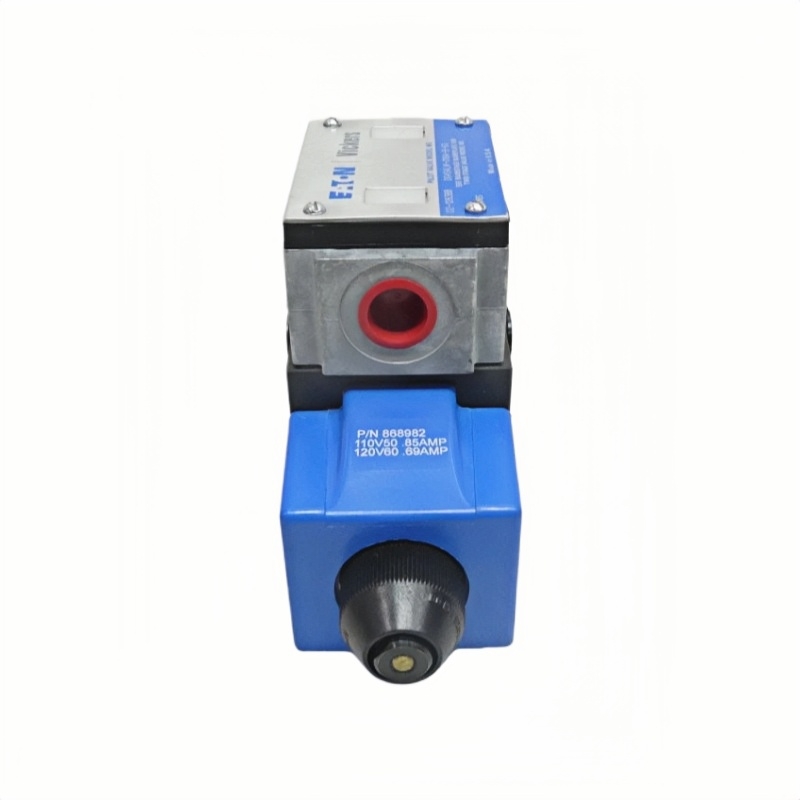

Vickers DG4S4LW-016A-B-60 Directional Control Valve
Description:
The Vickers DG4S4LW-016A-B-60 Directional Control Valve is a high-performance hydraulic valve designed for precise flow direction control in industrial hydraulic systems. Manufactured under the well-known Vickers brand, this valve offers stable operation, fast response, and reliable switching performance for demanding applications. It is widely used in construction machinery, industrial automation, metal processing equipment, and hydraulic power units.
share:
Vickers DG4S4LW-016A-B-60 Directional Control Valve
| Parameter | Specification |
|---|---|
| Product Name | Vickers DG4S4LW-016A-B-60 |
| Product Type | Hydraulic Directional Control Valve |
| Brand | Vickers |
| Valve Function | Directional Flow Control |
| Mounting Type | Subplate / Manifold Mount |
| Operation Type | Solenoid Operated |
| Spool Code | 016A |
| Pressure Rating | Up to 350 bar |
| Flow Capacity | Up to 80 L/min |
| Voltage Option | 60 Series Configuration |
| Seal Material | NBR Standard |
| Fluid Type | Hydraulic Oil |
| Port Standard | CETOP / NFPA Compatible |
| Application | Industrial Hydraulic Systems |
| Temperature Range | -20°C to +70°C |
| Installation Position | Optional |
| Origin | Industrial Hydraulic Component |
