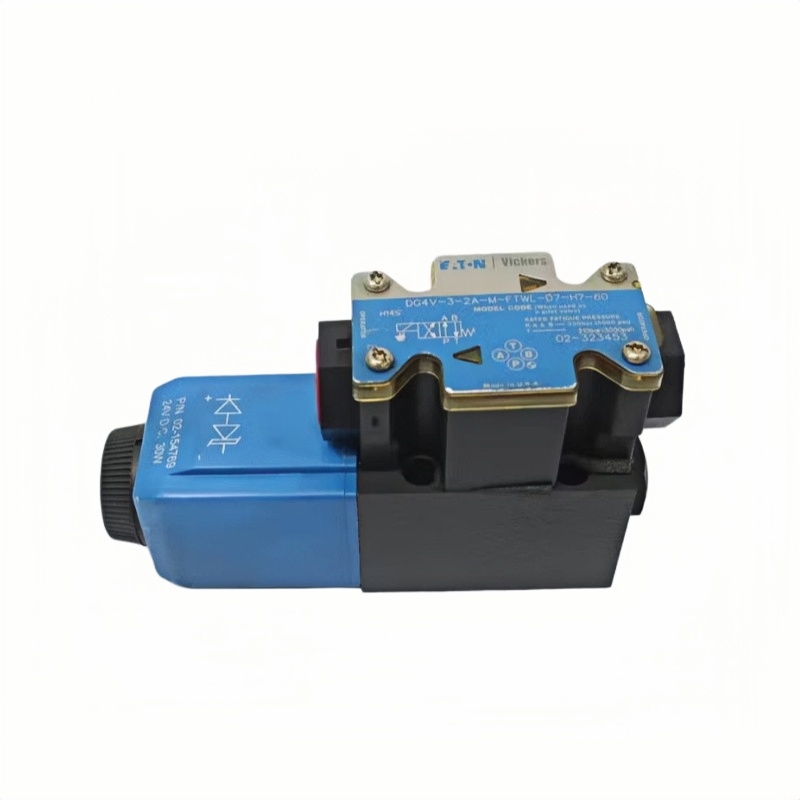

Vickers DG4V Hydraulic Solenoid Valve

Vickers DG4V Hydraulic Solenoid Valve

Description:

The Vickers DG4V series hydraulic solenoid valve is a high-performance, direct-acting or pilot-operated directional control valve widely used in industrial hydraulic systems. It is designed to control the start, stop, and direction of hydraulic fluid flow with high precision and fast response. Manufactured to ISO standard mounting patterns (D03 / D05 sizes), the DG4V valve is known for its reliability, compact structure, and compatibility with a wide range of hydraulic machinery including presses, injection molding machines, and mobile equipment.

share:

Vickers DG4V Hydraulic Solenoid Valve

Basic Specifications

Item Description
Series Vickers DG4V (DG4V-3 / DG4V-5)
Valve Type Solenoid Operated Directional Control Valve
Mounting Standard ISO 4401 / CETOP 3 (NG6), CETOP 5 (NG10)
Operation Direct / Pilot Operated Spool Type
Function 2-position / 3-position directional control
Fluid Type Mineral-based hydraulic oil
Viscosity Range 10 – 500 cSt
Filtration Requirement ISO 18/16/13 or better

Performance Data

Item Value
Max Operating Pressure Up to 350 bar (DG4V-3)
Flow Capacity 40 – 120 L/min (model dependent)
Response Time 25 – 50 ms
Leakage Low internal leakage spool design
Temperature Range -20°C to +80°C

Electrical Specifications

Item Value
Coil Voltage 12V DC / 24V DC / 110V AC / 220V AC
Power Consumption 16W – 32W
Protection Class IP65 (with connector)
Duty Cycle 100% continuous
Coil Standard DIN 43650 connector
