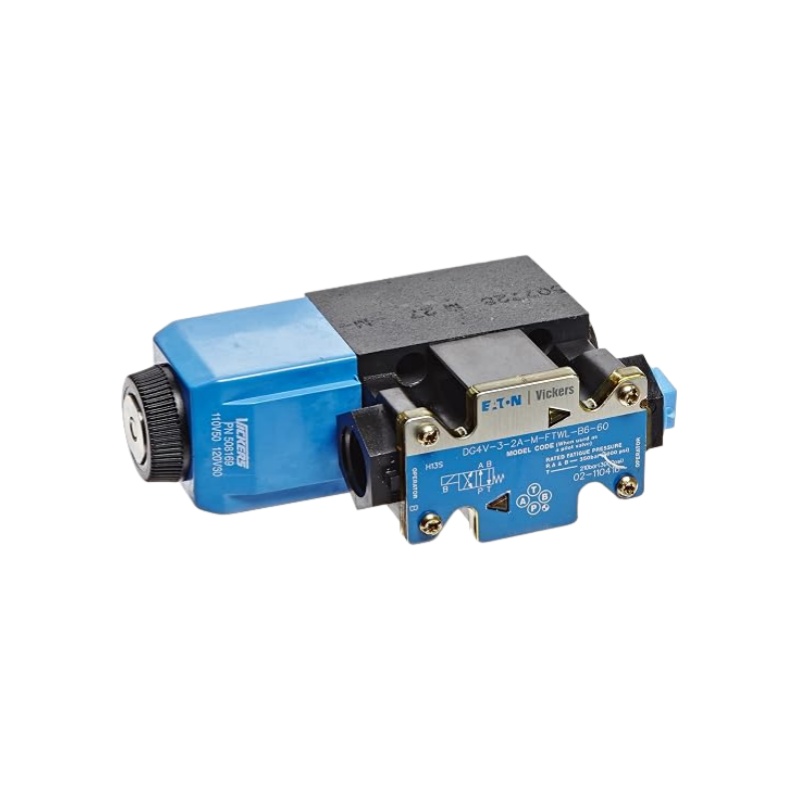

Vickers DG4V Series Solenoid Operated 4 Way Hydraulic Valve
Description:
The Vickers DG4V Series Solenoid Operated 4-Way Hydraulic Valve is a high-performance directional control valve designed for precise control of hydraulic fluid flow in industrial and mobile hydraulic systems. Featuring a robust wet-armature solenoid design, the DG4V series delivers reliable shifting performance, long service life, and low maintenance requirements. It is widely used in machine tools, injection molding machines, construction equipment, agricultural machinery, and industrial automation systems. Available in multiple spool configurations, voltages, and mounting options, the DG4V series provides flexible solutions for a wide range of hydraulic applications.
share:
Vickers DG4V Series Solenoid Operated 4 Way Hydraulic Valve
| Parameter | Specification |
|---|---|
| Product Name | Vickers DG4V Series Solenoid Operated 4-Way Hydraulic Valve |
| Brand | Vickers |
| Series | DG4V |
| Valve Type | Solenoid Operated Directional Control Valve |
| Function | 4-Way Directional Control |
| Operation | Wet Armature Solenoid |
| Mounting | ISO 4401 / CETOP Standard Subplate Mounting |
| Spool Positions | 2 Position / 3 Position |
| Spool Options | Multiple spool configurations available |
| Flow Capacity | Up to 80 L/min (depending on model) |
| Maximum Operating Pressure | Up to 350 bar (5075 psi) |
| Pilot Type | Direct Operated |
| Voltage Options | 12V DC, 24V DC, 110V AC, 220V AC |
| Fluid Type | Mineral Hydraulic Oil and Compatible Fluids |
| Fluid Temperature | -20°C to +70°C (depending on fluid) |
| Ambient Temperature | -20°C to +50°C |
| Filtration Requirement | ISO 4406 20/18/15 or better |
| Installation Position | Optional |
| Sealing Material | NBR (Standard), FKM Optional |
| Response Time | Fast Switching Performance |
| Applications | Industrial Machinery, Mobile Equipment, Hydraulic Power Units, Presses, Injection Molding Machines |
| Features | High Reliability, Long Service Life, Low Pressure Drop, Compact Design |
