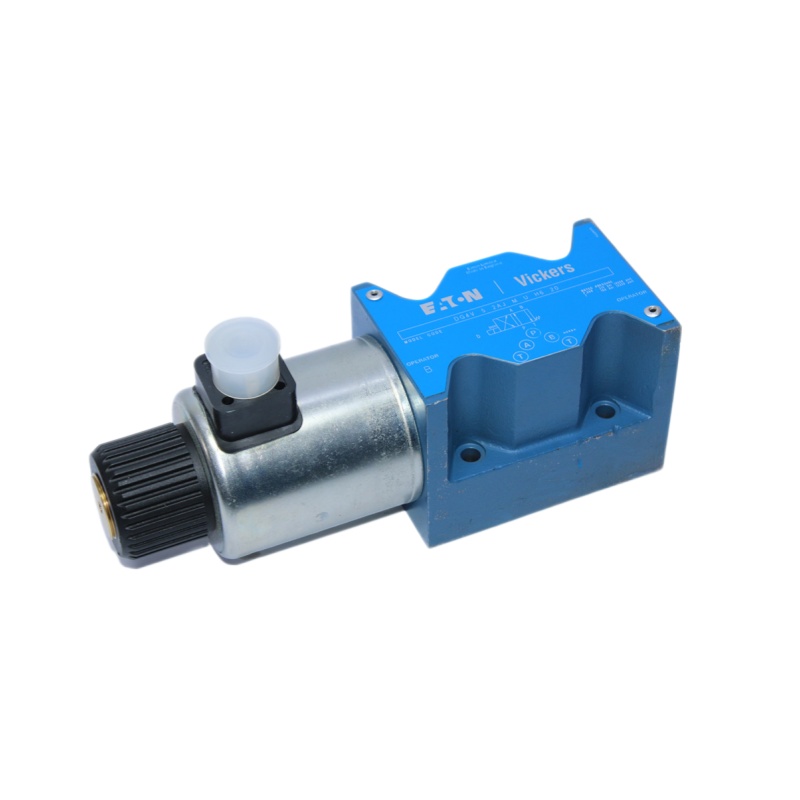

Vickers DG4V Solenoid Operated Directional Valve
Description:
The Vickers DG4V Solenoid Operated Directional Valve is a high-performance directional control valve designed to accurately control the start, stop, and direction of hydraulic fluid flow in industrial and mobile hydraulic systems. Known for its reliable switching performance, compact design, and long service life, the DG4V series is widely used in machine tools, injection molding machines, presses, construction equipment, and other demanding hydraulic applications. Available in multiple spool configurations, voltage options, and mounting styles, the DG4V valve provides excellent durability, fast response, and consistent operation under high-pressure conditions.
share:
Vickers DG4V Solenoid Operated Directional Valve
| Parameter | Specification |
|---|---|
| Product Name | Vickers DG4V Solenoid Operated Directional Valve |
| Brand | Vickers |
| Series | DG4V |
| Valve Type | Solenoid Operated Directional Control Valve |
| Mounting Type | Subplate Mounting (ISO 4401 / NFPA Standard) |
| Control Method | Wet Pin AC/DC Solenoid |
| Number of Ways | 4-Way |
| Number of Positions | 2 or 3 Position |
| Maximum Operating Pressure | Up to 350 bar (5075 psi) |
| Maximum Flow Rate | Up to 120 L/min (Depending on Model) |
| Fluid | Mineral Hydraulic Oil or Compatible Fluids |
| Fluid Temperature | -20°C to +70°C |
| Ambient Temperature | -20°C to +50°C |
| Viscosity Range | 12–350 cSt |
| Voltage Options | 12V DC, 24V DC, 110V AC, 220V AC |
| Coil Protection | IP65 (with Proper Connector) |
| Seal Material | NBR / FKM Optional |
| Installation Position | Optional |
| Response Time | Fast Switching |
| Applications | Industrial Machinery, Presses, Plastic Machinery, Machine Tools, Mobile Equipment |
| Condition | New / Original Available |
| Warranty | 12 Months |
