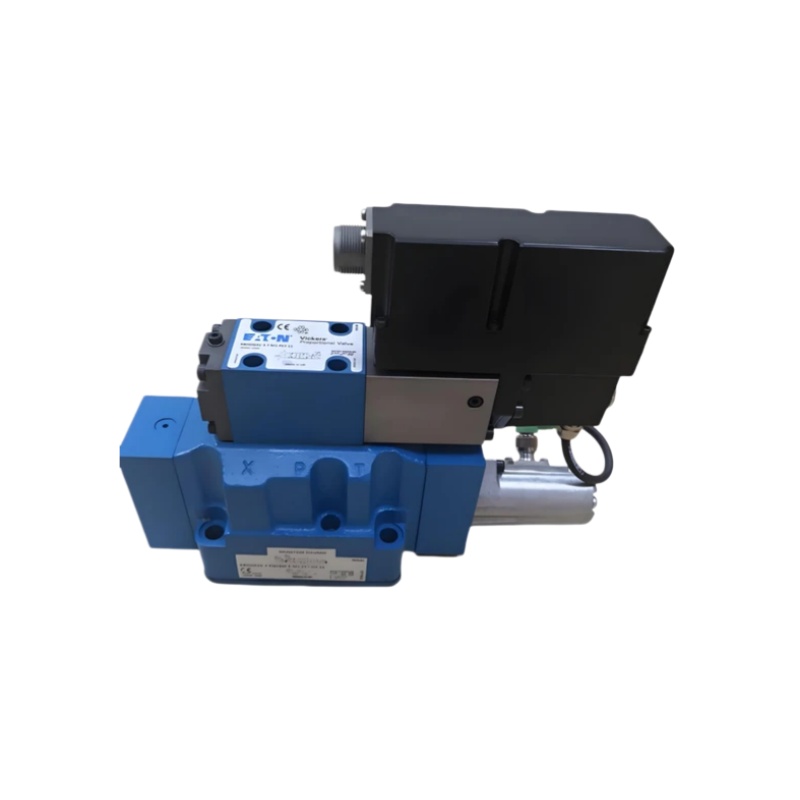

Vickers KBHDG5V Series Proportional and Directional Hydraulic Valves
Description:
The Vickers KBHDG5V Series Proportional and Directional Hydraulic Valves are high-performance two-stage proportional directional control valves designed for precise flow and motion control in demanding industrial hydraulic systems. Featuring an integrated onboard amplifier and spool position feedback, the KBHDG5V series delivers outstanding accuracy, repeatability, and dynamic response. These valves operate at pressures up to 350 bar (5,000 psi) with flow capacities up to 720 L/min, making them ideal for applications such as injection molding machines, steel mills, hydraulic presses, test benches, and industrial automation equipment.
share:
Vickers KBHDG5V Series Proportional and Directional Hydraulic Valves
| Item | Specification |
|---|---|
| Product Name | Vickers KBHDG5V Series Proportional Directional Hydraulic Valve |
| Valve Type | Two-stage proportional directional control valve |
| Brand | Vickers (Eaton / Danfoss) |
| Series | KBHDG5V-5 / KBHDG5V-7 / KBHDG5V-8 / KBHDG5V-10 |
| Control Type | Electro-hydraulic proportional control |
| Amplifier | Integrated onboard electronics (OBE) |
| Feedback | Spool position feedback (LVDT) |
| Rated Pressure | Up to 350 bar (5,000 psi) |
| Maximum Flow | Up to 720 L/min (190 US gpm) |
| Command Signal | ±10 VDC |
| Power Supply | 24 VDC |
| Electrical Connection | 7-pin connector |
| Mounting Standard | ISO 4401 / NFPA |
| Hydraulic Fluid | Mineral oil and compatible hydraulic fluids |
| Operating Temperature | Depends on hydraulic fluid specification |
| Response Characteristics | High accuracy and fast dynamic response |
| Applications | Injection molding machines, hydraulic presses, steel plants, machine tools, marine equipment, test systems, industrial automation |
