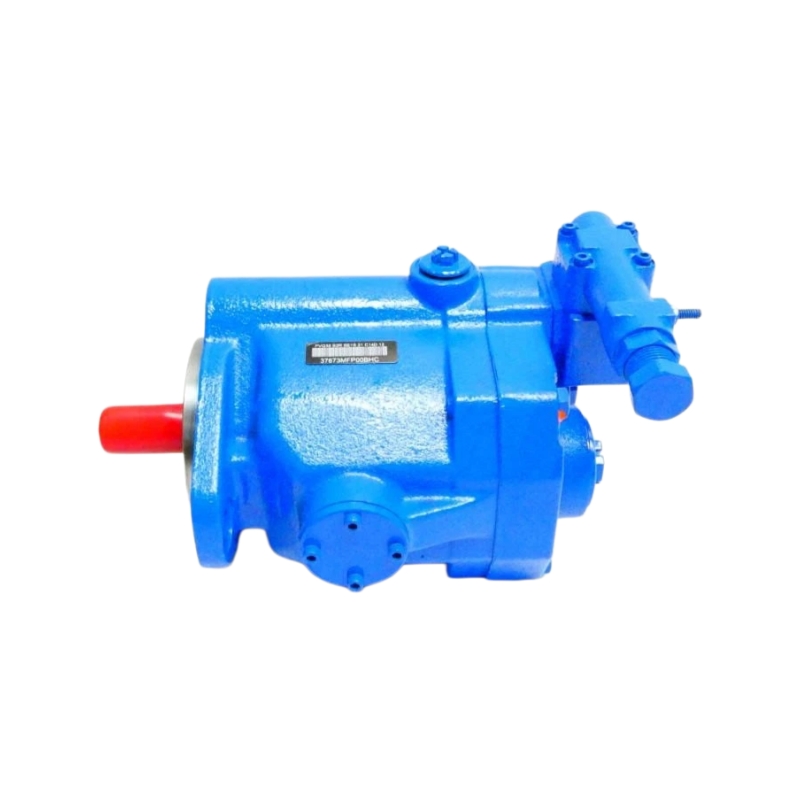

Vickers PVQ32-B2R-SE1S-21-C14D-12 Hydraulic Piston Pump
Description:
The Vickers PVQ32-B2R-SE1S-21-C14D-12 is a variable displacement axial piston pump designed for industrial hydraulic systems requiring low noise, stable pressure control, and reliable continuous-duty performance. As part of the PVQ quiet-series pumps, it is widely used in machine tools, injection molding machines, metal forming equipment, and industrial automation systems. The pump features pressure compensator control, SAE B mounting, and high volumetric efficiency for energy-saving hydraulic operation.
share:
Vickers PVQ32-B2R-SE1S-21-C14D-12 Hydraulic Piston Pump
| Parameter | Specification |
|---|---|
| Product Model | PVQ32-B2R-SE1S-21-C14D-12 |
| Product Type | Variable Displacement Axial Piston Pump |
| Brand | Vickers |
| Series | PVQ Quiet Series |
| Displacement | 32.9 cc/rev |
| Maximum Pressure | 140 bar (2000 psi) |
| Rotation | Right Hand (CW) |
| Mounting Flange | SAE B 2-Bolt |
| Shaft Type | Straight Keyed SAE “B” |
| Port Type | SAE O-Ring Rear Port |
| Seal Material | Buna-N |
| Control Type | Pressure Compensator |
| Pressure Setting | Factory Set 138 bar |
| Maximum Speed | 1800 RPM |
| Pump Design Number | 21 |
| Control Option | Adjustable Maximum Displacement Stop |
| Noise Feature | Low Noise / Quiet Operation |
| Application | Industrial Hydraulic Systems |
