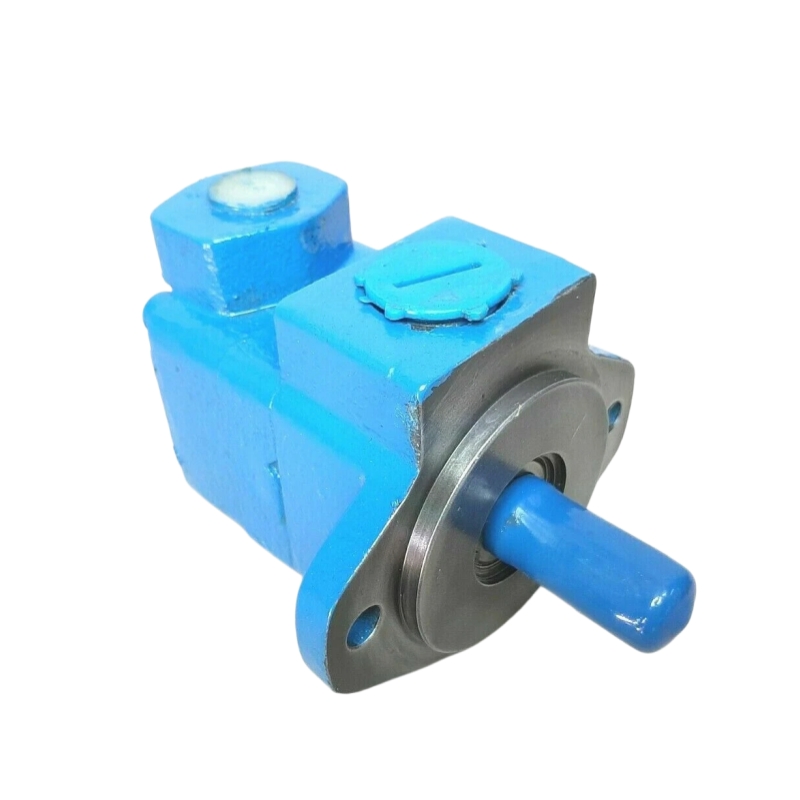

Vickers SQP01-4-1A23-15-S87 Hydraulic Pump

Vickers SQP01-4-1A23-15-S87 Hydraulic Pump

Description:

The Vickers SQP01-4-1A23-15-S87 Hydraulic Pump is a high-performance single vane pump designed for industrial and mobile hydraulic systems. Manufactured under the trusted Vickers brand (by Eaton), this pump is known for its low noise operation, stable pressure output, and long service life. It is widely used in machinery requiring reliable and efficient hydraulic power, such as injection molding machines, machine tools, and construction equipment.

share:

Vickers SQP01-4-1A23-15-S87 Hydraulic Pump

Parameter Specification
Model SQP01-4-1A23-15-S87
Pump Type Single Vane Pump
Displacement 4 cm³/rev (approx.)
Rated Pressure Up to 175 bar
Maximum Pressure Up to 210 bar
Speed Range 600 – 1800 rpm
Rotation Direction Right-hand (clockwise)
Mounting Type Flange Mount
Shaft Type Keyed Shaft
Port Type Standard SAE Ports
Noise Level Low Noise Design
Fluid Type Mineral Hydraulic Oil
Operating Temperature -10°C to 80°C
Application Industrial & Mobile Hydraulic Systems
