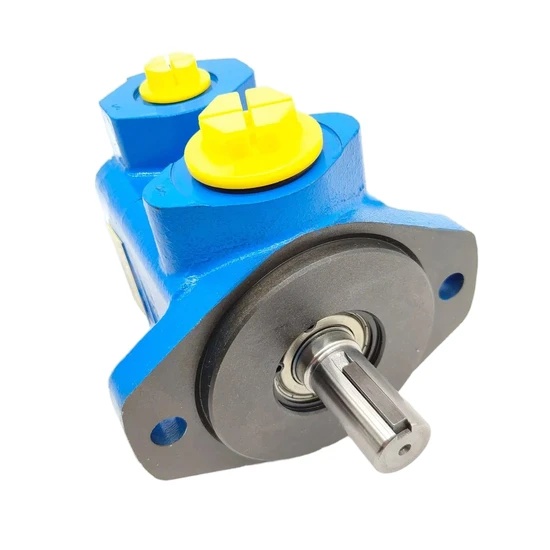

Vickers V20 Series Hydraulic Vane Pumps
Description:
The Vickers V20 Series Hydraulic Vane Pumps are fixed-displacement hydraulic pumps designed for reliable fluid power transmission in mobile and industrial hydraulic systems. The V20 range covers approximately 19.5–42.4 cm³/rev displacement, with model-dependent flow, speed, pressure, shaft, and port configurations.
share:
Vickers V20 Series Hydraulic Vane Pumps
| Item | Specification |
|---|---|
| Product Name | Vickers V20 Series Hydraulic Vane Pumps |
| Brand | Vickers by Danfoss |
| Pump Type | Fixed Displacement Vane Pump |
| Series | V20 |
| Pump Configuration | Single Vane Pump |
| Displacement Range | 19.5–42.4 cm³/rev (1.19–2.59 in³/rev) |
| Nominal Flow Range | Approximately 22.7–49.2 L/min (6–13 GPM) |
| Maximum Speed | Up to 3,000 rpm, depending on model |
| Maximum Pressure | Up to 172 bar (2,500 psi), depending on model |
| Mounting | 2-Bolt SAE-A; configurations may vary |
| Inlet Port Options | NPT or SAE threaded configurations, depending on model |
| Outlet Port Options | NPT or SAE threaded configurations, depending on model |
| Shaft Options | Straight keyed and splined configurations |
| Rotation | Clockwise or counterclockwise, depending on model |
| Pump Design | Pressure-balanced vane design |
| Typical Applications | Mobile machinery, industrial power units, material handling, presses, and hydraulic systems |
| Available Configurations | Multiple displacement, port, shaft, rotation, and outlet-cover configurations |
| Serviceability | Modular construction facilitates maintenance and replacement |
