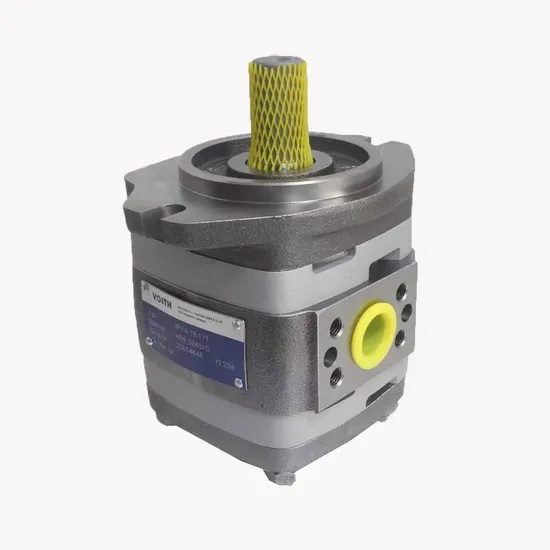

Voith IPV3 IPV4 IPV5 IPV6 IPV7 Internal Gear Pump
Description:
The Voith IPV series is a high-pressure internal gear pump designed for constant-speed drive applications. Voith states that the IPV range can reach up to 345 bar peak pressure and offers displacement up to 252 cm³/rev. The series features radial and axial sealing-gap compensation, high overall efficiency, low noise, good pressure-pulsation behavior, and the ability to be configured as multi-flow pumps.
share:
Voith IPV3 IPV4 IPV5 IPV6 IPV7 Internal Gear Pump
| Item | Specification |
|---|---|
| Manufacturer | Voith |
| Product Series | IPV |
| Product Type | High-Pressure Internal Gear Pump |
| Frame Sizes | IPV3, IPV4, IPV5, IPV6, IPV7 |
| Application | Constant-Speed Drive Applications |
| Displacement Range | 3.6–251.7 cm³/rev |
| Minimum Speed | 400 rpm |
| Maximum Speed | Up to 3,600 rpm |
| Continuous Pressure | 210–330 bar, depending on size |
| Peak Pressure | Up to 345 bar |
| Delivery at 1,500 rpm | Approx. 5.4–377.5 L/min |
| Pressure Fluid | HLP mineral oils according to DIN 51524 |
| Viscosity Range | 10–300 mm²/s (cSt) |
| Maximum Start-Up Viscosity | 2,000 mm²/s (cSt) |
| Fluid Temperature | -20 to +80 °C |
| Ambient Temperature | -20 to +60 °C |
| Input Pressure | 0.8–3.0 bar absolute |
| Rotation | Right-hand or left-hand |
| Mounting Position | Any |
| Mounting | SAE / ISO 3019-1 / VDMA flange options |
| Filtration | Recommended β10 ≥ 100 |
| Pump Design | Radial and axial sealing-gap compensation |
| Features | High efficiency, low noise, low pulsation, compact design, multi-flow capability |
