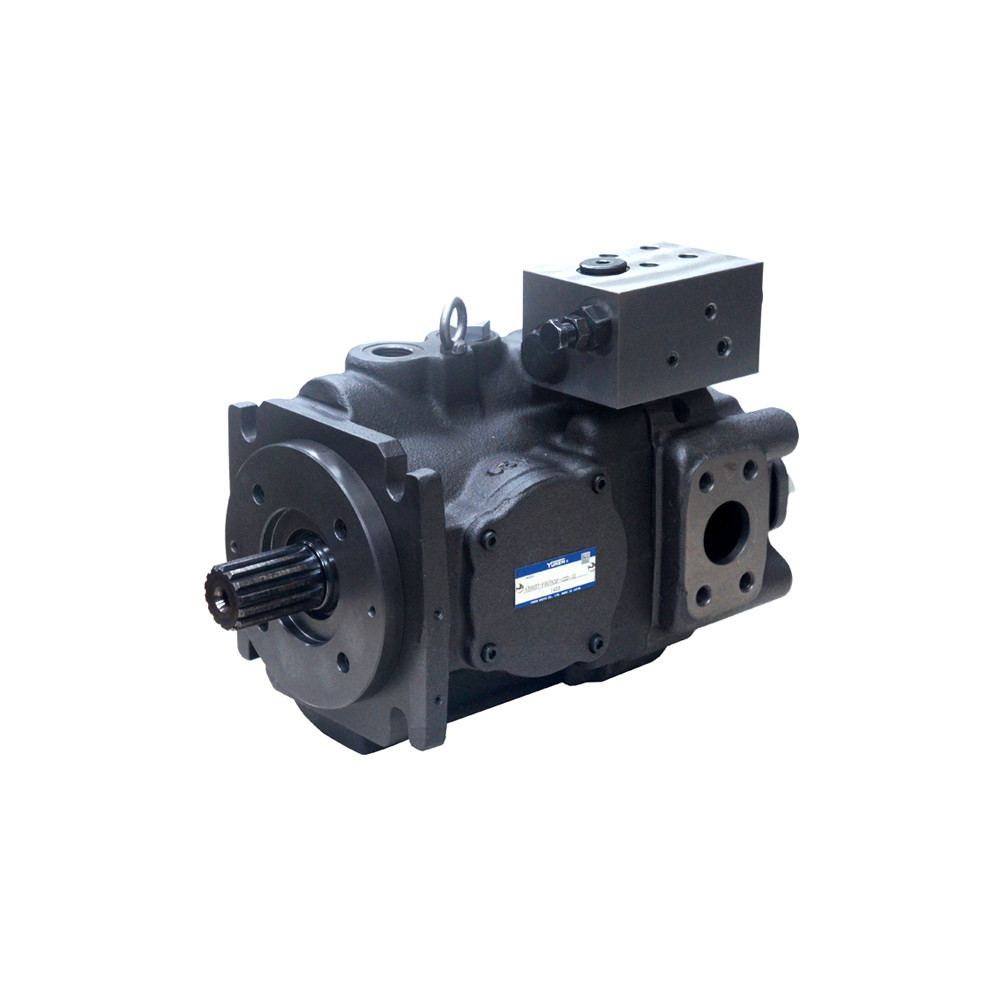

Yuken A3HG Series Piston Pump
Description:
The Yuken A3HG Series Piston Pump is a high-performance variable displacement axial piston pump designed for medium- to high-pressure hydraulic systems. Featuring pressure-compensated control, high volumetric efficiency, low noise operation, and reliable durability, the A3HG Series delivers stable hydraulic power for demanding industrial and mobile equipment. Its compact structure and energy-saving design make it suitable for continuous-duty applications requiring precise flow and pressure control.
share:
Yuken A3HG Series Piston Pump
| Parameter | Specification |
|---|
| Product Name | Yuken A3HG Series Piston Pump |
| Pump Type | Variable Displacement Axial Piston Pump |
| Control Type | Pressure Compensated / Load Sensing (varies by model) |
| Mounting Type | Flange Mount |
| Shaft Type | Splined / Keyed (depending on model) |
| Rotation | Clockwise (Standard) |
| Displacement | Various sizes available |
| Maximum Operating Pressure | Up to 31.5 MPa (315 bar) |
| Peak Pressure | Up to 35 MPa |
| Flow Rate | Depends on displacement and speed |
| Rated Speed | Up to 1,800 rpm |
| Hydraulic Fluid | Mineral Hydraulic Oil |
| Oil Temperature | -15°C to +70°C |
| Viscosity Range | 20–400 mm²/s |
| Filtration Requirement | ISO 4406 Cleanliness Recommended |
| Efficiency | High Volumetric & Mechanical Efficiency |
| Noise Level | Low Noise Design |
| Applications | Industrial Machinery, Injection Molding, Presses, CNC Machines, Steel Plants, Hydraulic Power Units |
