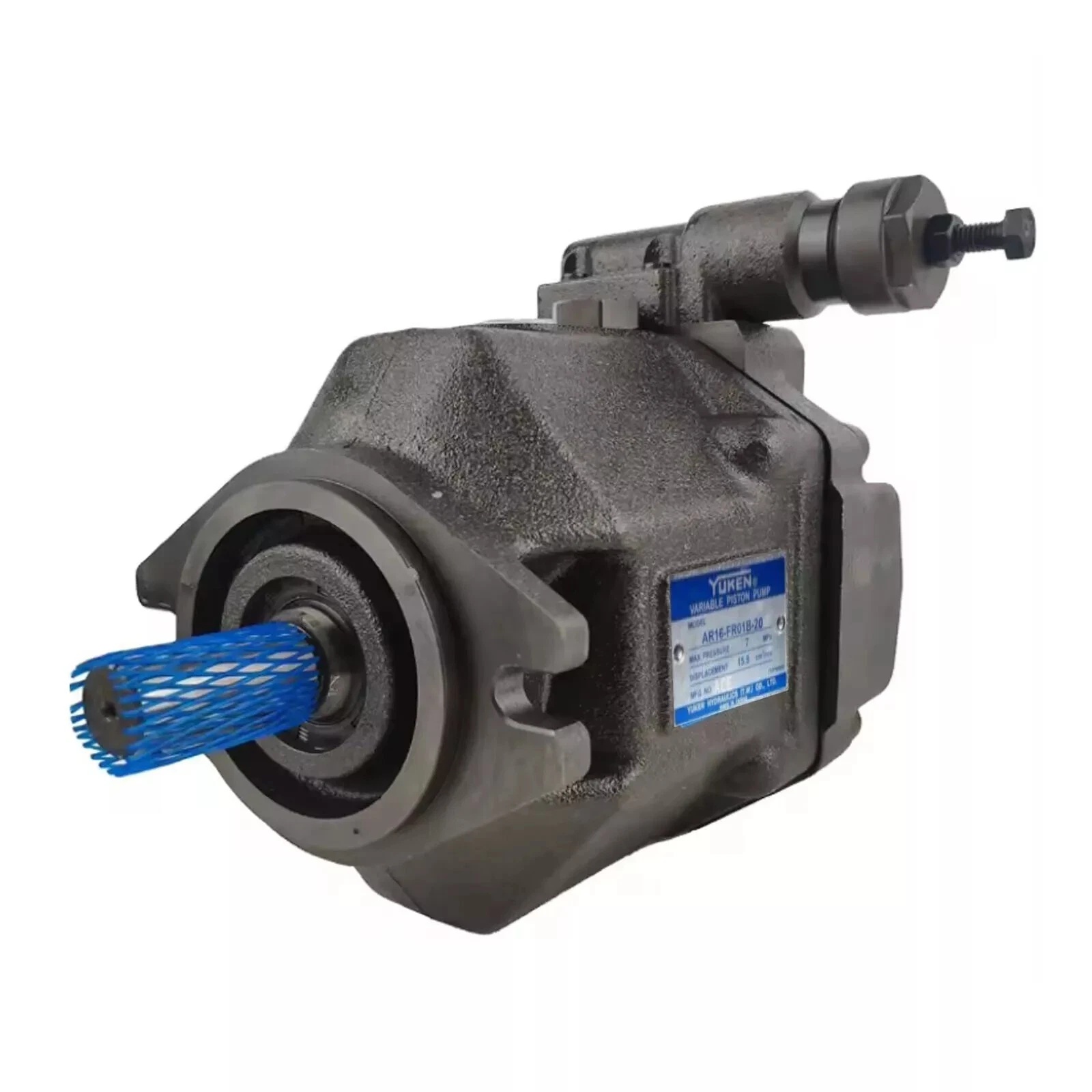

YUKEN AR16 Variable Piston Pump
Description:
The YUKEN AR16 is a high-performance variable displacement axial piston pump designed for industrial hydraulic systems. Known for precision, durability, and efficiency, it is suitable for mobile and stationary machinery. Its robust design ensures stable performance under high pressure, while its adjustable flow improves system flexibility and energy efficiency.
share:
YUKEN AR16 Variable Piston Pump
| Specification | Details |
|---|---|
| Model | AR16 |
| Type | Variable Displacement Axial Piston Pump |
| Maximum Pressure | 25 MPa (3625 psi) |
| Maximum Flow Rate | 63 L/min (16.6 GPM) |
| Displacement | 16 cm³/rev |
| Speed Range | 600 – 2000 rpm |
| Mounting Type | Flange Mount |
| Control Type | Mechanical / Electrohydraulic Optional |
| Weight | 24 kg |
| Fluid Compatibility | Mineral-based hydraulic oil |
| Operating Temperature Range | -20°C to 80°C |
| Features | Adjustable displacement, high efficiency, low noise, durable components |
