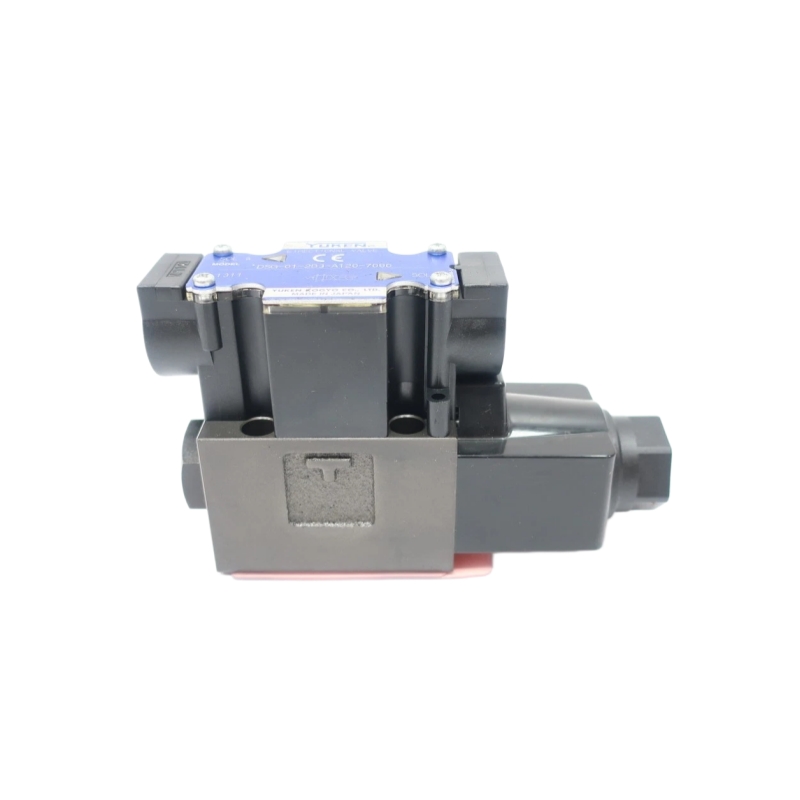

Yuken DSG-01-2B3-A120-7090 Directional Control Valve

Yuken DSG-01-2B3-A120-7090 Directional Control Valve

Description:

The Yuken DSG-01-2B3-A120-7090 Directional Control Valve is a high-performance solenoid operated hydraulic valve designed for precise flow direction control in industrial hydraulic systems. Manufactured with compact structure, stable shifting performance, and reliable sealing technology, this valve is widely used in machine tools, injection molding machines, hydraulic power units, construction machinery, and automated production equipment. The DSG-01 series offers fast response, low pressure loss, and long service life under continuous operation conditions.

share:

Yuken DSG-01-2B3-A120-7090 Directional Control Valve

Parameter Specification
Product Name Yuken DSG-01-2B3-A120-7090 Directional Control Valve
Valve Type Solenoid Operated Directional Control Valve
Series DSG-01
Spool Type 2B3
Rated Flow Up to 63 L/min
Maximum Operating Pressure 31.5 MPa
Mounting Type Subplate Mounting
Port Size CETOP 3 / NG6 Standard
Voltage AC 120V
Frequency 50/60 Hz
Fluid Type Hydraulic Oil
Viscosity Range 15 – 400 mm²/s
Fluid Temperature Range -15°C to +70°C
Response Type Wet Type Solenoid
Sealing Material NBR
Installation Position Optional
Application Industrial Hydraulic Systems
Country Standard ISO / CETOP Compatible
Model Number DSG-01-2B3-A120-7090
