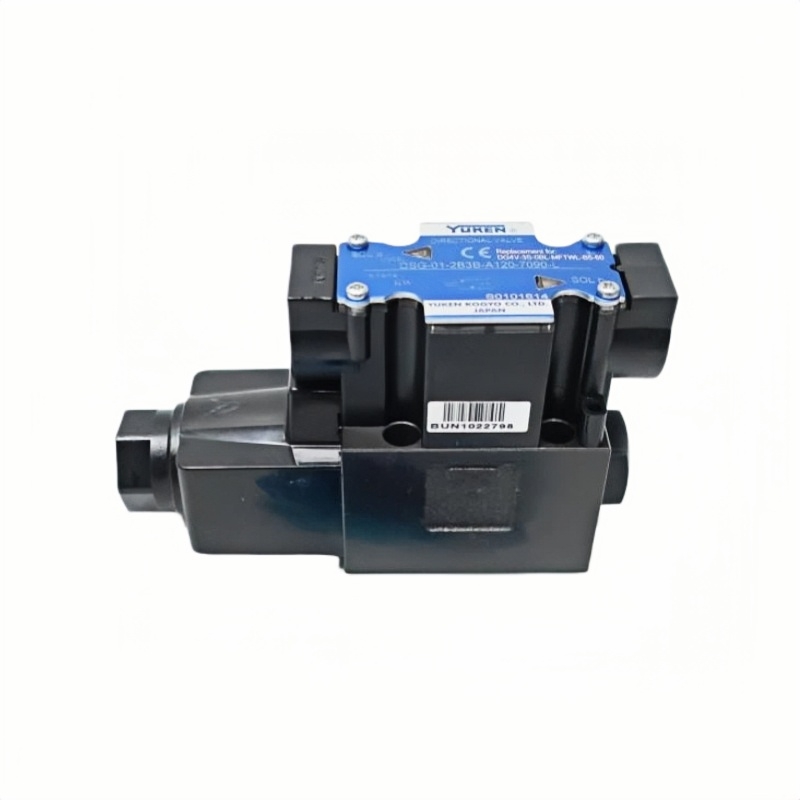

Yuken DSG-01-2B3B-A120-7090-L Directional Control Valve
Description:
The Yuken DSG-01-2B3B-A120-7090-L is a high-performance solenoid-operated directional control valve widely used in hydraulic systems to control oil flow direction. It is designed for stable operation, fast response, and high durability under industrial working conditions such as machinery automation, injection molding equipment, and hydraulic power units. Its compact size and reliable switching performance make it a popular choice for precision hydraulic control applications.
share:
Yuken DSG-01-2B3B-A120-7090-L Directional Control Valve
| Item | Specification |
|---|---|
| Model | DSG-01-2B3B-A120-7090-L |
| Brand | Yuken |
| Type | Solenoid Operated Directional Control Valve |
| Function | 3-position, 4-way directional control |
| Mounting Type | Subplate mounting (ISO standard) |
| Maximum Operating Pressure | Up to 31.5 MPa (315 bar) |
| Rated Flow | Approx. 60 L/min |
| Voltage | AC 120V (coil type A120) |
| Fluid | Mineral-based hydraulic oil |
| Viscosity Range | 15–400 mm²/s |
| Fluid Temperature | -15°C to +70°C |
| Ambient Temperature | -15°C to +50°C |
| Response Time | Fast switching solenoid response |
| Installation Position | Unrestricted (prefer horizontal) |
| Sealing | High-performance oil-resistant seals |
