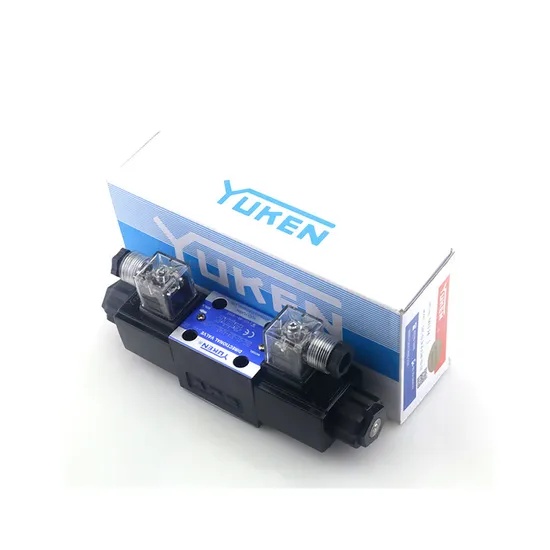

Yuken DSG-01-3C2-A110-N1-70 Hydraulic Control Valve
Description:
The Yuken DSG-01-3C2-A110-N1-70 is a solenoid operated directional control valve designed for reliable hydraulic flow direction control in industrial applications. It belongs to the Yuken DSG-01 series and uses a 3C2 spool configuration with three valve positions and four hydraulic ports. The A110 version uses an AC 110 V solenoid, while the N1 configuration indicates a plug in connector with an indicator light. The 70 design provides the updated DSG-01 design platform developed for higher pressure, higher flow capacity and lower pressure loss compared with earlier designs.
share:
Yuken DSG-01-3C2-A110-N1-70 Hydraulic Control Valve
| Item | Specification |
|---|---|
| Brand | Yuken |
| Product Type | Solenoid Operated Directional Control Valve |
| Series | DSG-01 Series |
| Model | DSG-01-3C2-A110-N1-70 |
| Valve Type | 3 Position 4 Way Directional Valve |
| Spool Type | 3C2 |
| Mounting Type | Subplate Mounting |
| Valve Size | 01 |
| Solenoid Type | AC Solenoid |
| Rated Voltage | AC 110 V |
| Connector Type | DIN Connector with Indicator Light |
| Design Number | 70 |
| Control Method | Solenoid Operated |
| Spool Position | Spring Centered |
| Port Configuration | P A B and T |
| Maximum Working Pressure | Up to 35 MPa depending on operating conditions |
| Maximum Flow | Up to 100 L min depending on spool and pressure conditions |
| Application | Industrial Hydraulic Systems |
| Suitable Applications | Machine Tools Industrial Machinery Hydraulic Power Units Automation Equipment |
| Manufacturer | Yuken Kogyo Co Ltd |
