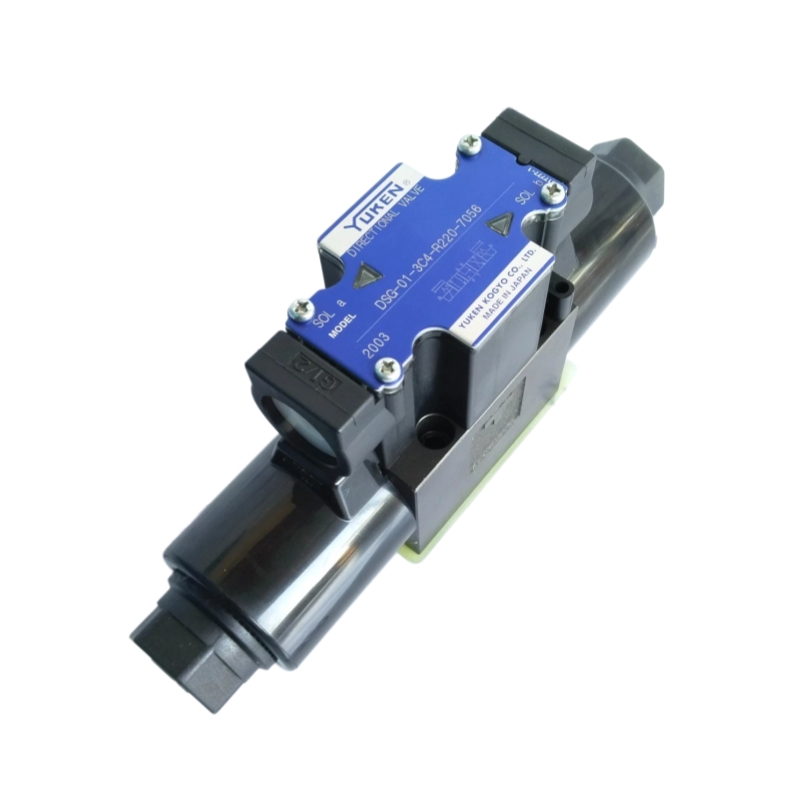

Yuken DSG-01-3C4-R220-7056 Directional Valve

Yuken DSG-01-3C4-R220-7056 Directional Valve

Description:

The Yuken DSG-01-3C4-R220-7056 directional control valve is a high-performance solenoid-operated hydraulic valve designed for precise flow direction control in hydraulic systems. Known for its reliability, fast response, and compact design, this valve is widely used in industrial automation, machine tools, and construction equipment. It ensures stable operation under high pressure and continuous-duty conditions, making it an ideal choice for demanding applications.

share:

Yuken DSG-01-3C4-R220-7056 Directional Valve

Parameter Specification
Model DSG-01-3C4-R220-7056
Valve Type Solenoid Operated Directional Valve
Mounting Type Subplate Mounting
Control Type 4-way, 3-position
Spool Type 3C4
Rated Flow 40 L/min
Maximum Pressure 31.5 MPa
Voltage AC 220V
Frequency 50/60 Hz
Power Consumption Approx. 50 VA
Insulation Class Class F
Protection Class IP65
Fluid Type Hydraulic Oil
Viscosity Range 15–400 mm²/s
Fluid Temperature Range -15°C to +70°C
Ambient Temperature -15°C to +50°C
Response Time Fast switching
Weight Approx. 1.5 – 2.0 kg
