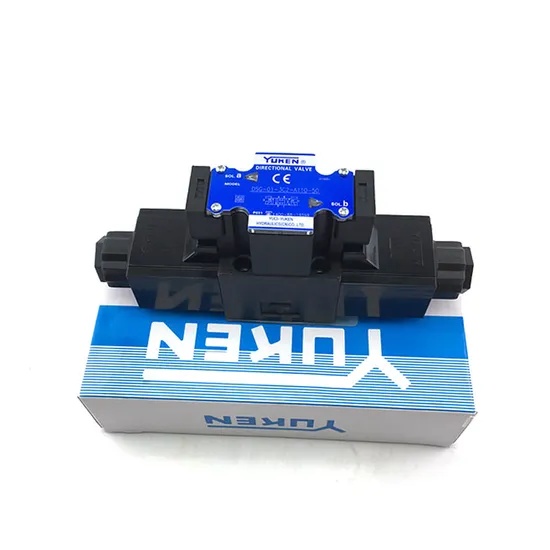

Yuken DSG-03-2D2-D24-50 Hydraulic Control Valves
Description:
The Yuken DSG 03 2D2 D24 50 is a solenoid operated directional control valve designed for hydraulic systems requiring reliable flow direction control under high pressure and high flow conditions. It is part of the Yuken DSG 03 series and uses a 24 V DC solenoid with a terminal box connection. The standard DSG 03 series supports maximum operating pressure up to 31.5 MPa and maximum flow up to 120 L/min.
share:
Yuken DSG-03-2D2-D24-50 Hydraulic Control Valves
| Item | Specification |
|---|---|
| Brand | Yuken |
| Model | DSG 03 2D2 D24 50 |
| Product Type | Solenoid Operated Directional Control Valve |
| Valve Size | 03 |
| Valve Function | 4 Way Directional Control |
| Position | 2 Position |
| Spool Type | 2D2 |
| Actuation | Solenoid |
| Solenoid Voltage | 24 V DC |
| Electrical Connection | Terminal Box |
| Mounting Type | Subplate Mounting |
| Maximum Operating Pressure | 31.5 MPa 4570 PSI |
| Maximum Flow Rate | 120 L/min 31.7 US GPM |
| Maximum T Line Back Pressure | 16 MPa 2320 PSI |
| Maximum Changeover Frequency | Up to 240 cycles per minute depending on solenoid type |
| Solenoid Type | Wet Type |
| Design Number | 50 |
| Application | Industrial Hydraulic Systems |
| Country of Origin | Japan |
