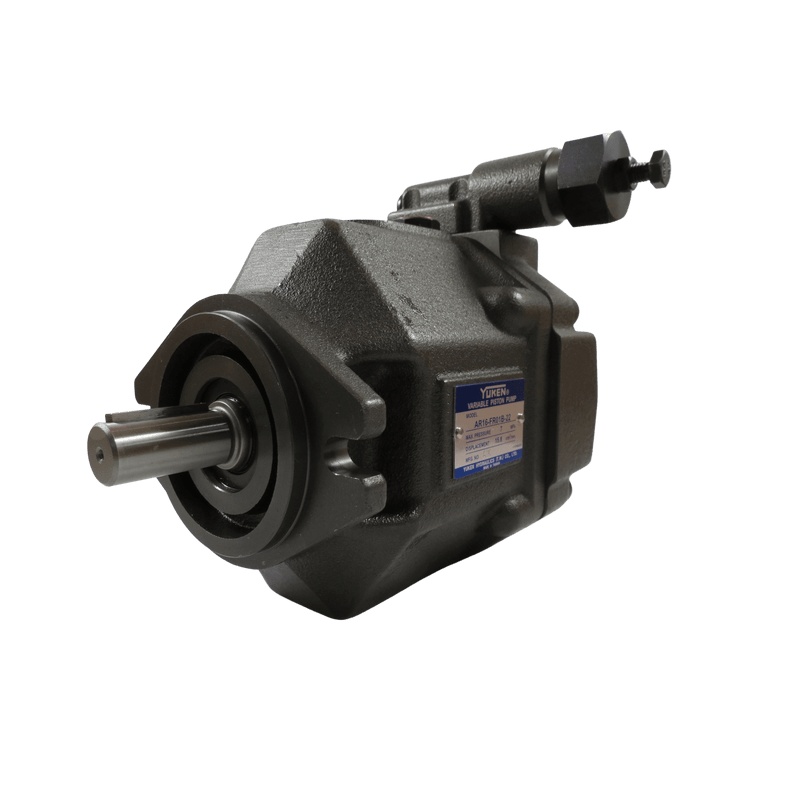

Yuken SAE 16cc AR Series Piston Pump
Description:
The Yuken SAE 16cc AR Series Piston Pump is a compact, energy-efficient variable displacement hydraulic pump designed for industrial and mobile hydraulic systems. Featuring low-noise operation, high volumetric efficiency, and reliable pressure control, the AR Series helps reduce energy consumption while maintaining stable hydraulic performance. Its lightweight design and durable construction make it suitable for machine tools, injection molding machines, hydraulic presses, and various industrial automation applications.
share:
Yuken SAE 16cc AR Series Piston Pump
| Parameter | Specification |
|---|---|
| Product Name | Yuken SAE 16cc AR Series Piston Pump |
| Pump Type | Variable Displacement Axial Piston Pump |
| Series | AR Series |
| Displacement | 16 cc/rev |
| Mounting Type | SAE Mounting |
| Rated Pressure | 16 MPa |
| Maximum Pressure | 21 MPa |
| Speed Range | 600 – 1,800 rpm |
| Rotation Direction | Clockwise (Standard) |
| Control Type | Pressure Compensated |
| Hydraulic Fluid | Mineral Oil-Based Hydraulic Oil |
| Operating Temperature | -15°C to +70°C |
| Noise Level | Low Noise Design |
| Weight | Approx. 12–15 kg |
| Application | Industrial Hydraulic Systems |
| Features | Compact, Energy Saving, High Efficiency |
