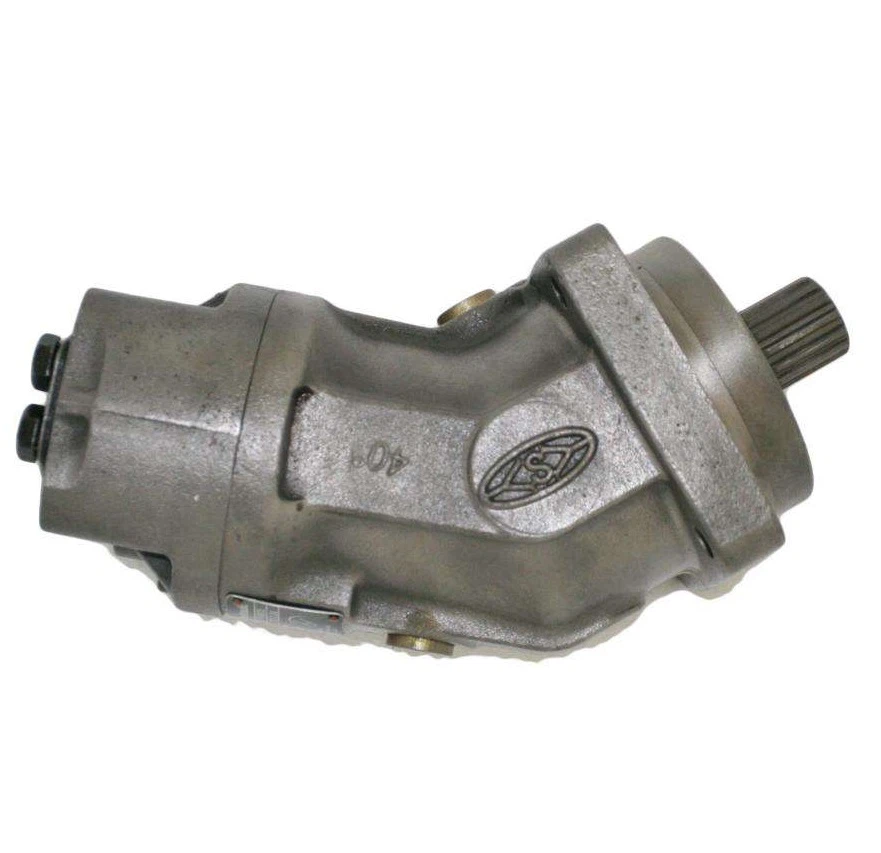

Rexroth A2FM500 60W-VZH010 Hydraulic Motor

Rexroth A2FO500/60L-VPH11 axial piston pump

Description:

The Rexroth A2FM500 60W-VZH010 is a high-performance axial piston motor, designed to deliver superior power, efficiency, and reliability in demanding industrial applications. Featuring robust construction and precise engineering, this motor is ideal for use in open and closed loop circuits in mobile and stationary hydraulic systems. The A2FM500 provides smooth operation, high torque, and low maintenance, making it an excellent choice for heavy-duty machinery, construction, and agricultural equipment.

share:

Advantages of the Rexroth A2FM500 60W-VZH010 Hydraulic Motor

  1. High Torque Output: Delivers superior torque across a wide range of speeds, ideal for heavy-duty applications.

  2. Compact and Robust Design: Built for reliability and efficiency, even in harsh working conditions.

  3. Smooth and Quiet Operation: Low-noise operation for a more pleasant working environment and reduced wear on the system.

  4. Versatile Application Range: Perfect for open and closed circuit systems in industrial, mobile, and construction machinery.

  5. Energy Efficient: Optimized for high efficiency, reducing operational costs and improving system performance.

  6. Low Maintenance: Extended service intervals and reliable performance over long periods of operation.

Parameter Specification / Details
Motor Type Axial Piston Motor
Series A2FM 500
Manufacturer Bosch Rexroth
Displacement 500 cm³/rev
Max Pressure 350 bar
Continuous Pressure 210 bar
Speed Range 0 – 3,000 RPM
Torque Output Up to 1,500 Nm (depending on speed and pressure)
Flow Rate 0 – 95 l/min (dependent on pressure)
Mounting Type Flange, foot, and other custom configurations
Port Connections SAE, BSP, ISO 6162-1/2
Temperature Range -20°C to +100°C (with appropriate fluids)
Materials Cast iron housing, hardened steel pistons, Viton seals
Efficiency High mechanical and volumetric efficiency
Applications Heavy-duty machinery, construction, agriculture
Special Features Compact design, reduced noise, high power density
Maintenance Low maintenance design with extended service intervals
Certification ISO 9001, CE certified
