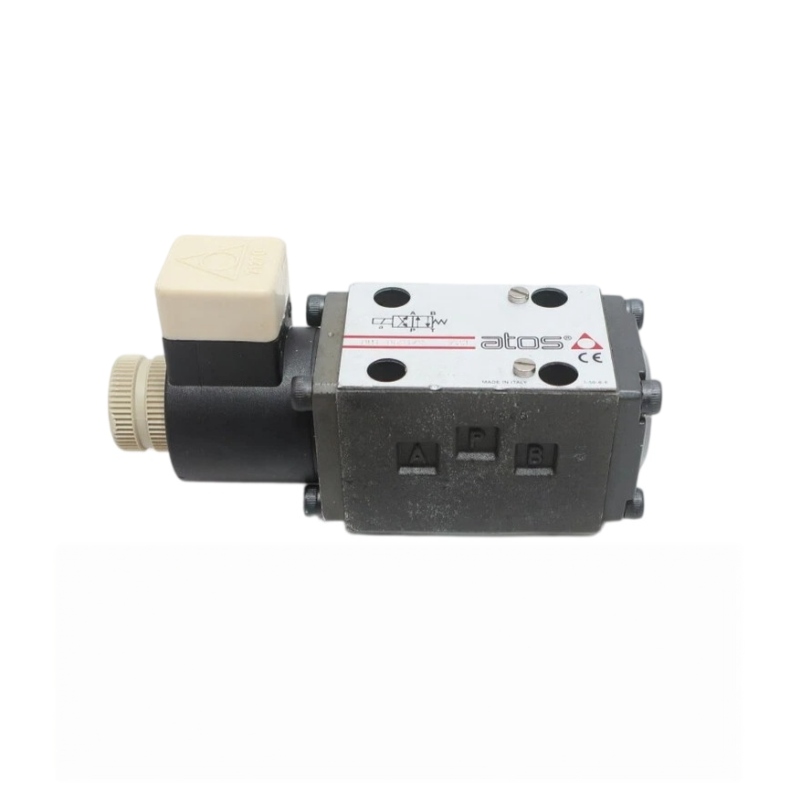

Atos DHI 0631 Valve
Description:
The Atos DHI 0631 is a direct acting solenoid operated directional control valve in the DHI series. The DHI series uses size 06 mounting and supports hydraulic flow control in industrial systems. Atos documentation identifies configuration 63 as a single solenoid configuration with two external positions and spring offset. The DHI series has a maximum flow of up to 60 L per min and maximum pressure of 350 bar depending on the complete configuration.
share:
Atos DHI 0631 Valve
| Parameter | Specification |
|---|---|
| Brand | Atos |
| Model | DHI 0631 |
| Product Type | Solenoid Operated Directional Control Valve |
| Valve Series | DHI |
| Valve Size | Size 06 |
| Mounting Standard | ISO 4401 |
| Mounting Interface | CETOP 3 |
| Valve Configuration | 63 |
| Solenoid Configuration | Single Solenoid |
| Spool Position | 2 External Positions |
| Return Method | Spring Offset |
| Maximum Flow | Up to 60 L per min |
| Maximum Pressure | Up to 350 bar |
| Solenoid Supply | AC or DC depending on configuration |
| Spool Type | Model Dependent |
| Seal Material | NBR Standard or FKM Option |
| Electrical Connector | Model Dependent |
| Hydraulic Fluid | Compatible Hydraulic Oil |
| Application | Industrial Hydraulic Systems |
| Supplier | YsHydraulic |
