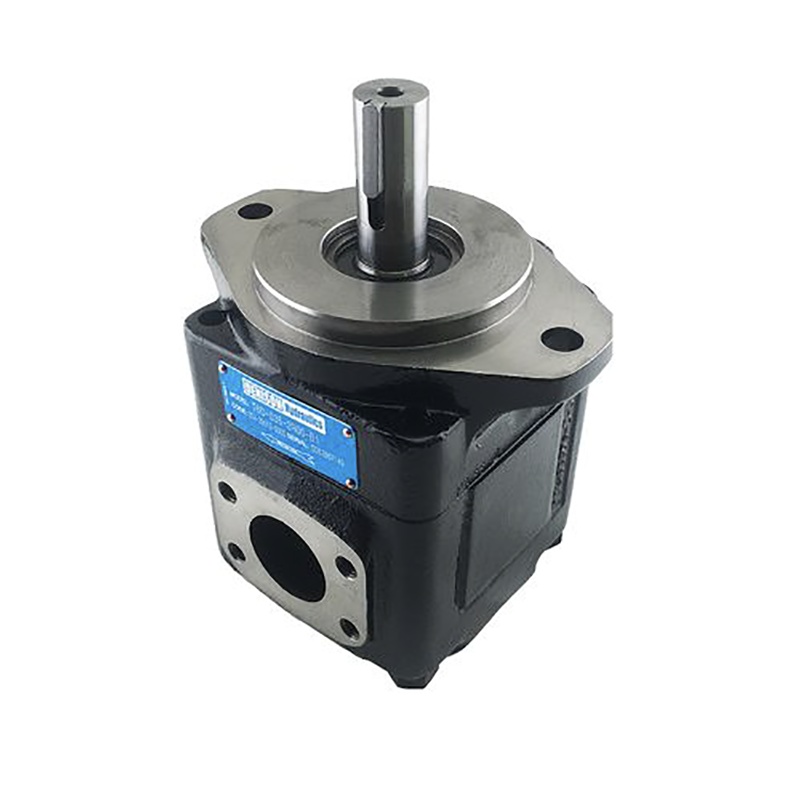

Denison T6 Series Hydraulic Vane Pump
Description:
The Denison T6 Series Hydraulic Vane Pump is a high-performance industrial vane pump designed for demanding hydraulic applications requiring high pressure, low noise, and long service life. The T6 series features a balanced vane design that reduces internal bearing loads, improves volumetric efficiency, and extends component lifespan. It is widely used in construction machinery, injection molding machines, marine equipment, agricultural machinery, and industrial hydraulic power units.
share:
Denison T6 Series Hydraulic Vane Pump
| Parameter | Specification |
|---|---|
| Product Type | Hydraulic Vane Pump |
| Series | Denison T6 Series |
| Pump Design | Balanced Vane Pump |
| Mounting Type | SAE Flange / Foot Mount |
| Displacement Range | 5.8 – 269.8 cm³/rev |
| Maximum Operating Pressure | Up to 275 bar (4000 psi) |
| Peak Pressure | Up to 300 bar (4350 psi) |
| Speed Range | 600 – 2800 rpm |
| Rotation | Clockwise / Counterclockwise |
| Fluid Compatibility | Mineral Oils, Hydraulic Fluids |
| Operating Temperature | -20°C to +80°C |
| Filtration Requirement | ISO 4406 18/16/13 or better |
| Noise Level | Low Noise Design |
| Efficiency | High Volumetric Efficiency |
| Applications | Industrial, Mobile, Marine, Agricultural |
| Features | Long Service Life, Easy Maintenance, High Reliability |
