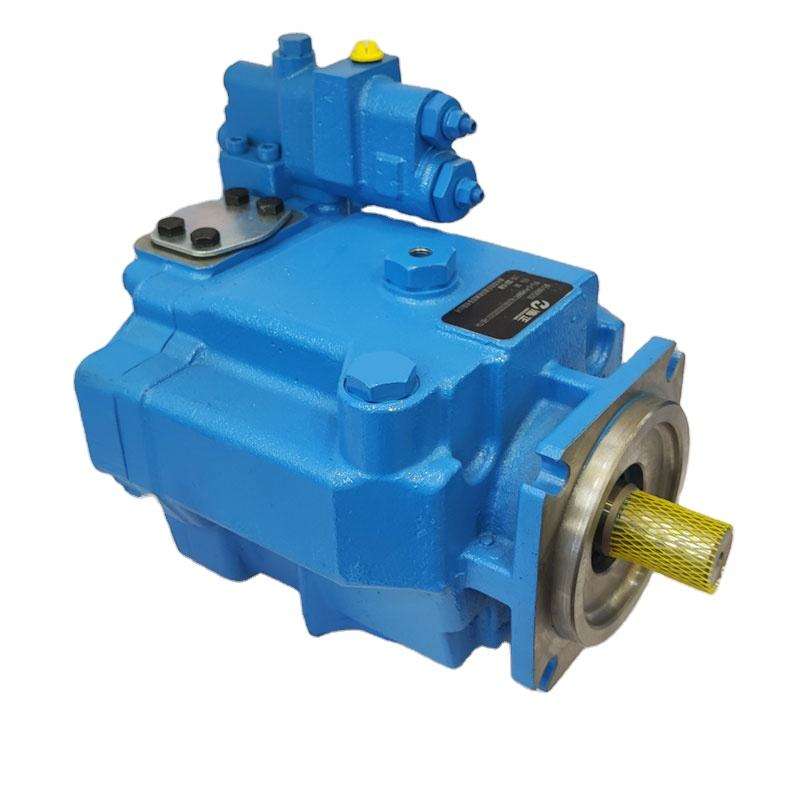

Eaton Vickers PVH Series Pump
Description:
The Eaton Vickers PVH Series Pump is a variable displacement axial piston pump designed for demanding open circuit hydraulic systems. The PVH series uses an inline swash plate piston design and is available in multiple displacement sizes from PVH057 to PVH141. Depending on the model size the rated pressure is up to 250 bar with maximum pressure up to 280 bar. The pump is suitable for industrial and mobile hydraulic applications that require reliable flow control and high power density.
share:
Eaton Vickers PVH Series Pump
| Parameter | Specification |
|---|---|
| Brand | Eaton Vickers |
| Series | PVH |
| Product Type | Variable displacement axial piston pump |
| Pump Design | Inline swash plate piston design |
| Circuit Type | Open circuit |
| Displacement Range | 57.4 to 141.1 cm3 per revolution |
| Available Sizes | PVH057 PVH063 PVH074 PVH081 PVH098 PVH106 PVH131 PVH141 |
| Rated Pressure | Up to 250 bar |
| Maximum Pressure | Up to 280 bar |
| Maximum Rated Speed | Up to 1800 rpm depending on model and inlet condition |
| Control Options | Pressure compensation and pressure flow compensation options |
| Mounting | SAE mounting configurations depending on model code |
| Shaft Options | Keyed and splined shaft configurations depending on model code |
| Port Options | SAE flange and other configurations depending on model code |
| Application Type | Industrial and mobile hydraulic systems |
| Main Advantages | High flow capacity reliable operation flexible control options |
| Model Identification | Complete model code should be checked before ordering |
