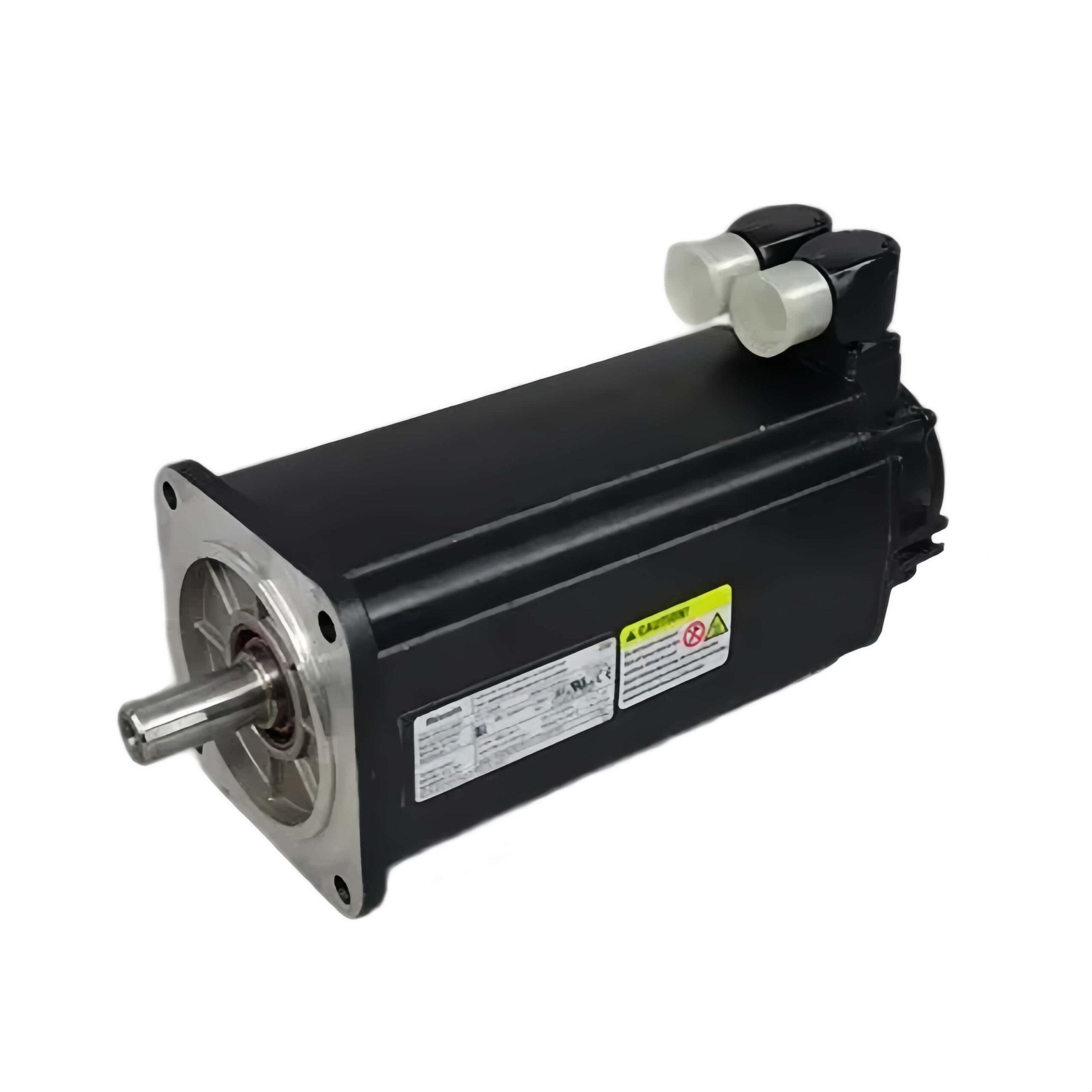

MSK061C
Description:
The Bosch Rexroth MSK061C is a compact synchronous servomotor from the IndraDyn S series. It provides high dynamic response, multiple winding options and a maximum torque of 32 Nm. The MSK061C 0600 NN version can reach up to 6000 rpm. An optional holding brake is also available, with a rated voltage of 24 V and holding torque of 10 Nm.
share:
| Parameter | MSK061C 0200 NN | MSK061C 0300 NN | MSK061C 0600 NN |
|---|---|---|---|
| Continuous torque at standstill 60 K | 8 Nm | 8 Nm | 8 Nm |
| Continuous current at standstill 60 K | 3.2 A | 4.3 A | 7.7 A |
| Continuous torque at standstill 100 K | 9 Nm | 9 Nm | 9 Nm |
| Continuous current at standstill 100 K | 3.6 A | 4.8 A | 8.7 A |
| Continuous torque surface | 12 Nm | 12 Nm | 12 Nm |
| Continuous current surface | 4.8 A | 6.5 A | 11.6 A |
| Maximum torque | 32 Nm | 32 Nm | 32 Nm |
| Maximum current | 14.4 A | 19.4 A | 34.7 A |
| Torque constant at 20 C | 2.80 Nm/A | 2.04 Nm/A | 1.14 Nm/A |
| Voltage constant | 174.9 V/min | 125.7 V/min | 70.5 V/min |
| Winding resistance at 20 C | 8.1 Ohm | 4.5 Ohm | 1.55 Ohm |
| Winding inductivity | 36.5 mH | 21.4 mH | 6.7 mH |
| Number of pole pairs | 4 | 4 | 4 |
| Rotor inertia | 0.00075 kg m2 | 0.00075 kg m2 | 0.00075 kg m2 |
| Thermal time constant | 18 min | 15 min | 15 min |
| Maximum speed | 3100 rpm | 4200 rpm | 6000 rpm |
| Sound pressure level | Less than 75 dBA | Less than 75 dBA | Less than 75 dBA |
| Weight | 8.3 kg | 8.3 kg | 8.3 kg |
| Operating ambient temperature | 0 to 40 C | 0 to 40 C | 0 to 40 C |
| Protection rating | IP65 | IP65 | IP65 |
| Insulation class | 155 | 155 | 155 |
