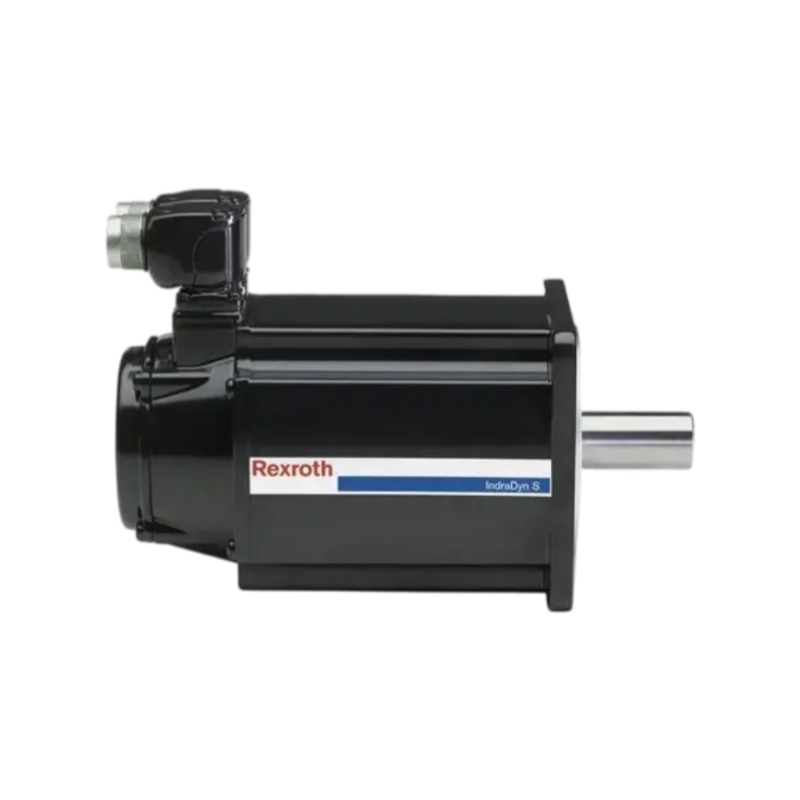

MSK040B Motor
Description:
The MSK040B is a Bosch Rexroth IndraDyn S synchronous servomotor for high precision motion control applications. It combines a compact motor design with high speed operation, accurate encoder feedback and optional 4 Nm holding brake functionality. The MSK040B is commonly used in industrial automation, machine tools, packaging equipment and other applications requiring reliable servo positioning and dynamic motion control.
share:
| Item | Specification |
|---|---|
| Product Model | MSK040B |
| Product Series | IndraDyn S MSK |
| Product Type | Synchronous Servomotor |
| Motor Size | 040 |
| Motor Length | B |
| Winding Versions | 0450 and 0600 |
| Cooling Method | Natural convection |
| Continuous Torque at Standstill 60 K | 1.7 Nm |
| Continuous Torque at Standstill 100 K | 1.9 Nm |
| Continuous Current at Standstill 60 K | 1.5 A for 0450 and 2.0 A for 0600 |
| Continuous Current at Standstill 100 K | 1.7 A for 0450 and 2.2 A for 0600 |
| Maximum Torque | 5.1 Nm |
| Maximum Current | 6.0 A for 0450 and 8.0 A for 0600 |
| Maximum Speed | 6000 rpm for 0450 and 7500 rpm for 0600 |
| Torque Constant at 20 C | 1.26 Nm A for 0450 and 0.92 Nm A for 0600 |
| Winding Resistance at 20 C | 14.70 Ohm for 0450 and 8.40 Ohm for 0600 |
| Winding Inductivity | 64.700 mH for 0450 and 35.400 mH for 0600 |
| Number of Pole Pairs | 4 |
| Ambient Operating Temperature | 0 to 40 C |
| Protection Rating | IP65 |
| Insulation Class | 155 |
| Holding Brake | Optional electrically released brake |
| Holding Brake Torque | 4.0 Nm |
| Holding Brake Voltage | 24 V |
| Encoder Options | Optical single turn or multiturn encoder depending on configuration |
| Encoder Interface | Hiperface or other specified feedback configuration |
| Connector | Up to 240 degree rotatable depending on configuration |
