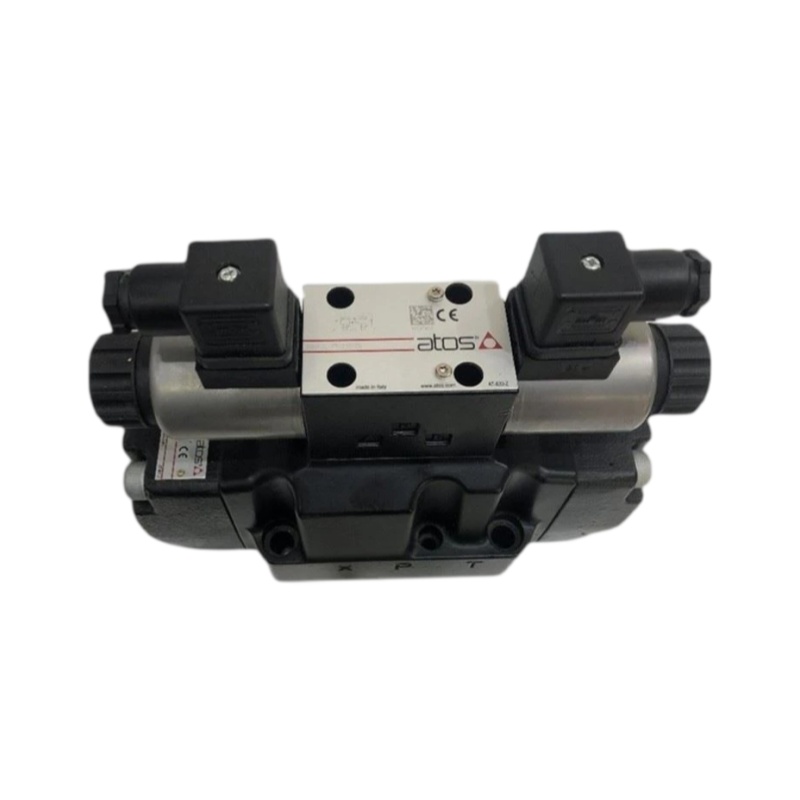

Atos DKE Directional Solenoid Valve
Description:
The DKE series is a direct operated spool type directional solenoid valve designed for subplate mounting. Atos specifies a maximum flow of 150 L per min and a maximum pressure of 350 bar for the standard DKE series. The valve is available with AC or DC solenoids and different spool and configuration options for hydraulic circuit control.
share:
Atos DKE Directional Solenoid Valve
| Parameter | Atos DKE Specification |
|---|---|
| Product type | Direct operated directional spool valve |
| Valve function | Hydraulic directional control |
| Mounting | Subplate mounting |
| Nominal size | Size 10 |
| Mounting standard | ISO 4401 |
| Maximum flow | Up to 150 l/min |
| Maximum pressure | Up to 350 bar |
| Valve positions | 2 or 3 positions depending on configuration |
| Actuation | Solenoid operated |
| Solenoid supply | AC or DC |
| Typical DC voltage options | 12, 14, 24, 28, 110, 220 VDC |
| AC voltage options | Various 110 V and 230 V configurations depending on version |
| Spool configurations | Multiple spool types available |
| Valve body | 5 chamber DC version and 3 chamber AC version |
| Connectors | DIN and optional AMP, Deutsch or lead wire versions |
| Standard coil protection | IP65 |
| Optional connector protection | Up to IP67 for applicable versions |
| Sealing options | NBR and FKM depending on configuration |
| Position monitoring | FI or FV available on applicable versions |
| Manufacturer | Atos |
| Series | DKE |
