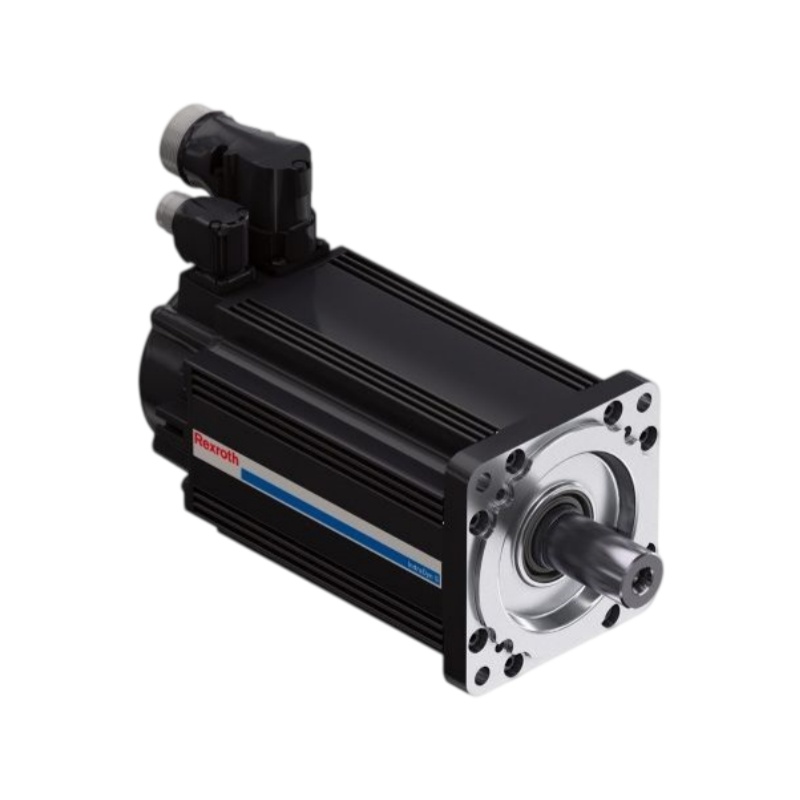

Bosch Rexroth MSK030B synchronous servomotor
Description:
The Bosch Rexroth MSK030B is a compact synchronous servomotor from the IndraDyn S MSK series, developed for precision motion control and industrial automation applications. The MSK030B 0900 NN configuration provides 0.4 Nm continuous torque at standstill, 1.8 Nm maximum torque and a maximum speed of 9000 rpm. Its compact construction, IP65 protection and natural convection cooling make it suitable for space limited automation equipment and precision drive systems.
share:
Bosch Rexroth MSK030B synchronous servomotor
| Parameter | Specification |
|---|---|
| Product Type | Synchronous Servomotor |
| Product Series | MSK IndraDyn S |
| Model | MSK030B |
| Standard Configuration | MSK030B 0900 NN |
| Motor Size | 030 |
| Motor Length | B |
| Winding Code | 0900 |
| Continuous Torque at Standstill 60 K | 0.4 Nm |
| Continuous Current at Standstill 60 K | 1.5 A |
| Continuous Torque at Standstill 100 K | 0.4 Nm |
| Continuous Current at Standstill 100 K | 1.7 A |
| Maximum Torque | 1.8 Nm |
| Maximum Current | 6.8 A |
| Torque Constant at 20 C | 0.29 Nm per A |
| Voltage Constant at 20 C | 17.9 V per 1000 rpm |
| Winding Resistance at 20 C | 7.2 Ohm |
| Winding Inductance | 8.1 mH |
| Component Leakage Capacitance | 0.7 nF |
| Number of Pole Pairs | 3 |
| Rotor Inertia | 0.00001 kg m2 |
| Thermal Time Constant | 19 min |
| Maximum Speed | 9000 rpm |
| Sound Pressure Level | Less than 75 dBA |
| Weight | 1.3 kg without brake or 1.6 kg with brake |
| Operating Ambient Temperature | 0 to 40 C |
