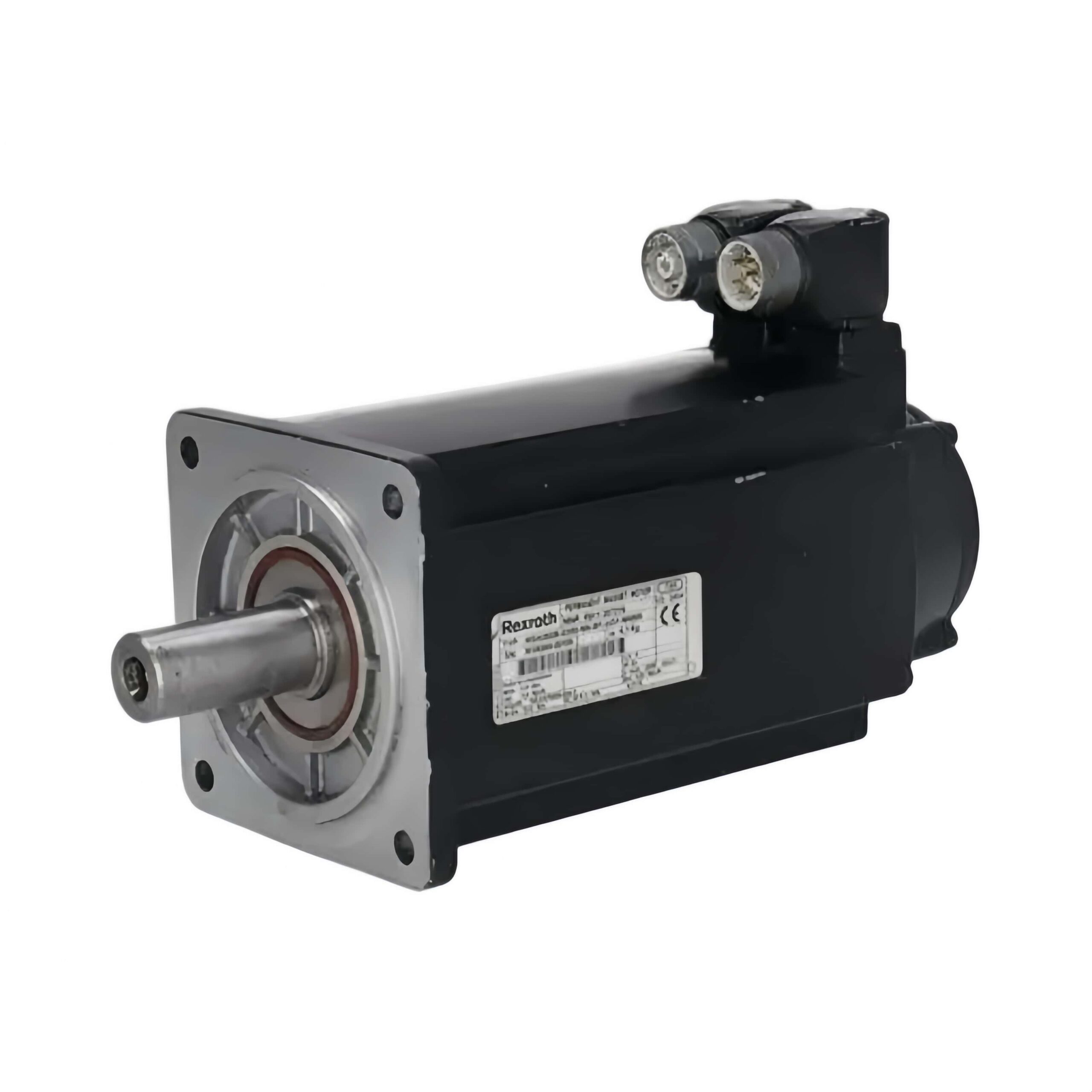

MSK060B Motor
Description:
Bosch Rexroth MSK060B is a compact synchronous servo motor designed for high precision motion control applications. It belongs to the IndraDyn S motor family and provides high torque performance, reliable speed control and accurate positioning. The MSK060B series is available with different winding configurations and maximum speed ratings, making it suitable for industrial automation, machine tools, production equipment and other demanding motion control systems.
share:
| Parameter | MSK060B |
|---|---|
| Product Type | Synchronous Servo Motor |
| Product Series | IndraDyn S |
| Motor Size | MSK060B |
| Continuous Torque at Standstill 60K | 5.0 Nm |
| Continuous Current at Standstill 60K | 3.0 A or 6.1 A |
| Maximum Torque | 15.0 Nm |
| Maximum Current | 12.0 A or 24.4 A |
| Torque Constant at 20 C | 1.85 Nm per A or 0.90 Nm per A |
| Voltage Constant at 20 C | 113.5 V per 1000 rpm or 55.2 V per 1000 rpm |
| Winding Resistance at 20 C | 7.30 Ohm or 1.85 Ohm |
| Winding Inductivity | 73 mH or 18 mH |
| Number of Pole Pairs | 4 |
| Rotor Moment of Inertia | 0.00048 kg m2 |
| Thermal Time Constant | 16 min |
| Maximum Speed | 4800 rpm or 6000 rpm |
| Sound Pressure Level | Less than 75 dB A |
| Ambient Operating Temperature | 0 to 40 C |
| Protection Class | IP65 |
| Insulation Class | F |
