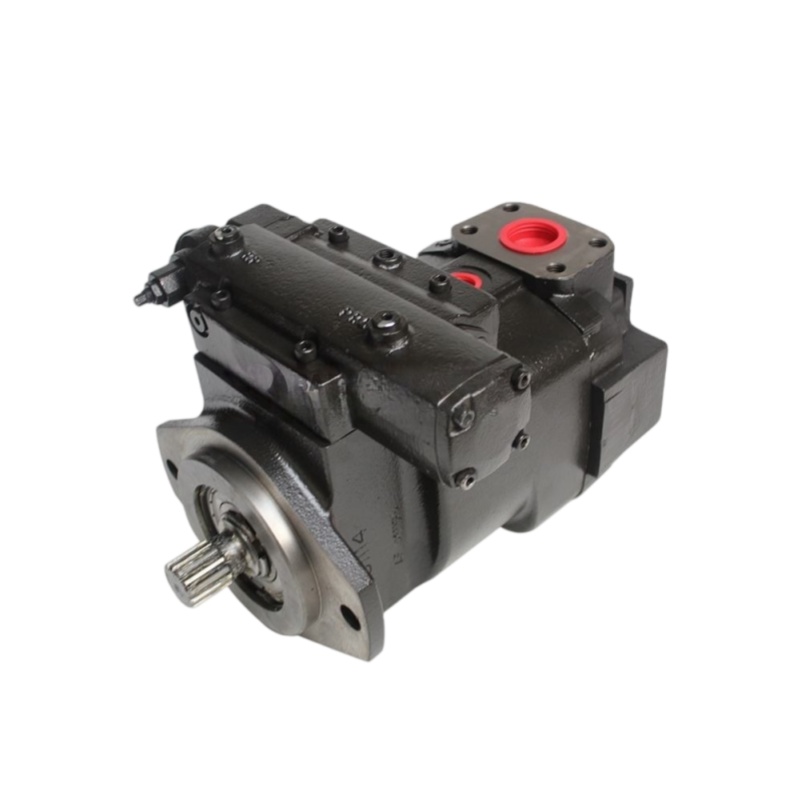

Oilgear PVWW
Description:
The Oilgear PVWW is an open loop variable displacement axial piston pump developed for hydraulic applications using low lubricity and low viscosity fluids. Its seven displacement options from 14.1 to 130.2 ml per revolution provide flexibility for different flow and pressure requirements. The PVWW series is suitable for water based and environmentally friendly fluids and offers multiple control options for application flexibility.
share:
| Item | Specification |
|---|---|
| Brand | Oilgear |
| Series | PVWW |
| Product Type | Variable displacement axial piston pump |
| Circuit Type | Open loop |
| Available Models | PVWW 014, PVWW 022, PVWW 034, PVWW 046, PVWW 076, PVWW 098, PVWW 130 |
| Frame Sizes | A, B and C |
| Displacement Range | 14.1 to 130.2 ml per revolution |
| Maximum Speed | 1800 rpm |
| Rated Continuous Pressure | Up to 3000 psi or 205 bar depending on model |
| Peak Pressure | Up to 3500 psi or 240 bar depending on model |
| Flow Range at 1800 rpm | 20.8 to 214.2 l per min depending on model |
| Fluid Application | Low lubricity and low viscosity hydraulic fluids |
| Minimum Speed | 600 rpm |
| Mounting | SAE A, SAE B or SAE C two bolt depending on frame size |
| Control Options | Multiple optional control configurations |
| Application | Water based and environmentally friendly hydraulic fluids |
