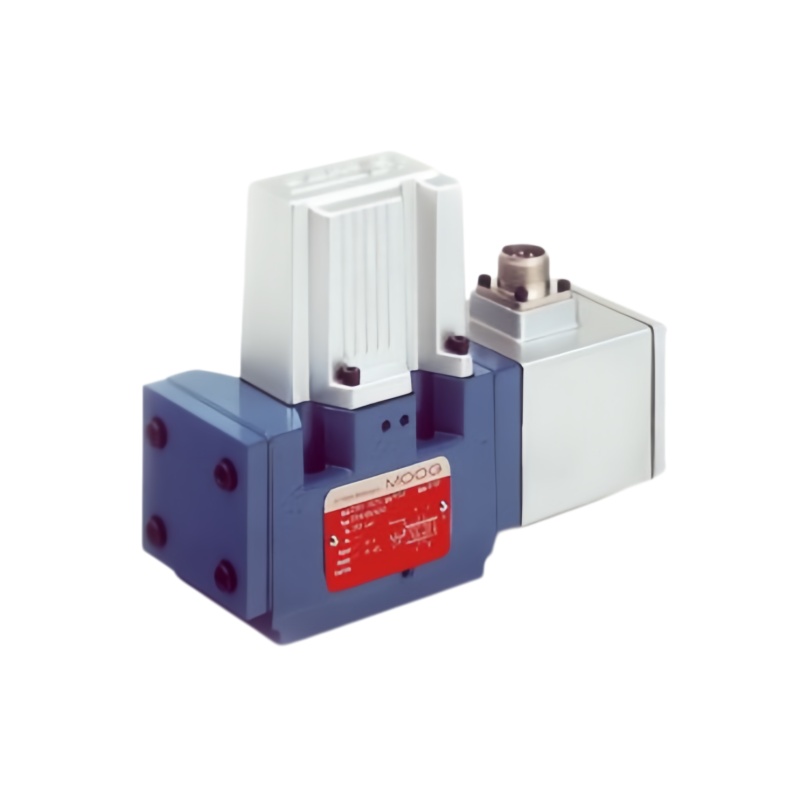

Moog D662
Description:
The Moog D662 is a high performance pilot operated proportional hydraulic valve designed for accurate flow control in demanding industrial hydraulic systems. It belongs to the Moog D660 Series and uses a two stage or three stage pilot configuration depending on the model. With rated flow options from 150 to 250 L min and maximum operating pressure up to 350 bar, the D662 is suitable for applications requiring fast response, precise control and reliable hydraulic performance.
share:
Moog D662
| Item | Specification |
|---|---|
| Product | Moog D662 Hydraulic Proportional Valve |
| Series | D660 Series |
| Valve Type | Pilot Operated Proportional Valve |
| Control Function | Flow |
| Valve Version | 4 Way or 2 x 2 Way |
| Mounting Pattern | ISO 4401 07 06 0 94 |
| Nominal Size | NG16 |
| Pilot Stage | 2 Stage or 3 Stage depending on configuration |
| Pilot Valve | D061 Series ServoJet or D630 Series |
| Pilot Connection | Internal or external |
| Rated Flow | 150 to 250 L min |
| Maximum Operating Pressure | Up to 350 bar |
| Response Time | 9 to 44 ms depending on configuration |
| Threshold | Less than 0.1 percent for standard D662 configurations |
| Hysteresis | Less than 0.5 percent for standard D662 configurations |
| Main Spool Stroke | Plus or minus 5 mm |
| Electrical Supply | 24 V DC |
| Rated Signal | Plus or minus 10 V or plus or minus 10 mA |
| Electrical Connector | 6 plus PE or 11 plus PE |
| Weight | Approximately 11 to 11.5 kg |
| Application | Industrial hydraulic motion and flow control |
