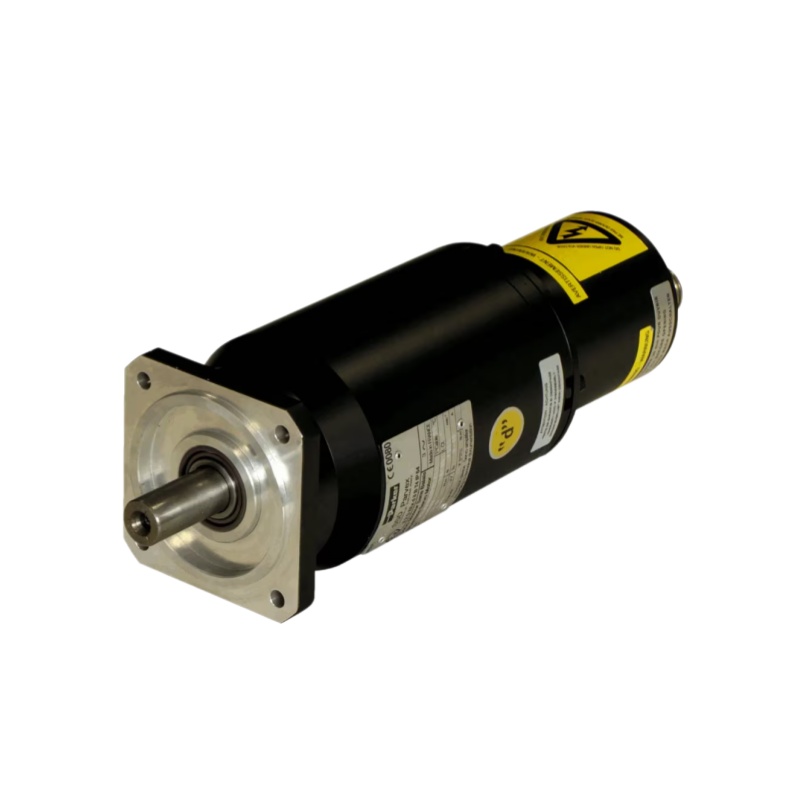

Parker EX Motor
Description:
The Parker EX Motor is an explosion proof servo motor designed for precise and dynamic motion control in hazardous industrial environments. The EX series features a robust explosion proof enclosure and is available with different feedback, shaft, brake and protection configurations. It is suitable for applications where reliable servo performance is required in areas containing potentially explosive gas or dust. Typical applications include chemical processing, oil and gas equipment, pharmaceutical machinery, printing machinery, painting robots and waste processing systems.
share:
Parker EX Motor
| Item | Parker EX Motor |
|---|---|
| Product Type | Explosion Proof Servo Motor |
| Product Series | EX Series |
| Motor Type | Permanent Magnet Synchronous Motor |
| Frame Sizes | 70 mm 92 mm 120 mm 155 mm |
| Continuous Torque | 1.75 to 35 Nm |
| Peak Torque | Up to 137 Nm |
| Maximum Speed | Up to 7600 rpm |
| Input Voltage | 230 VAC 400 VAC |
| Protection Rating | IP64 IP65 |
| Feedback Options | Resolver Absolute Encoder |
| Brake | Optional |
| Shaft Options | Smooth Shaft Keyed Shaft |
| Safety Standards | ATEX IECEx UL cUL and related certifications depending on version |
| Operating Temperature | Minus 20 to 60 C with derating |
| Cooling Method | Natural Ventilation |
| Typical Applications | Chemical Oil and Gas Pharmaceutical Printing Painting Waste Processing Grain and Textile Industries |
