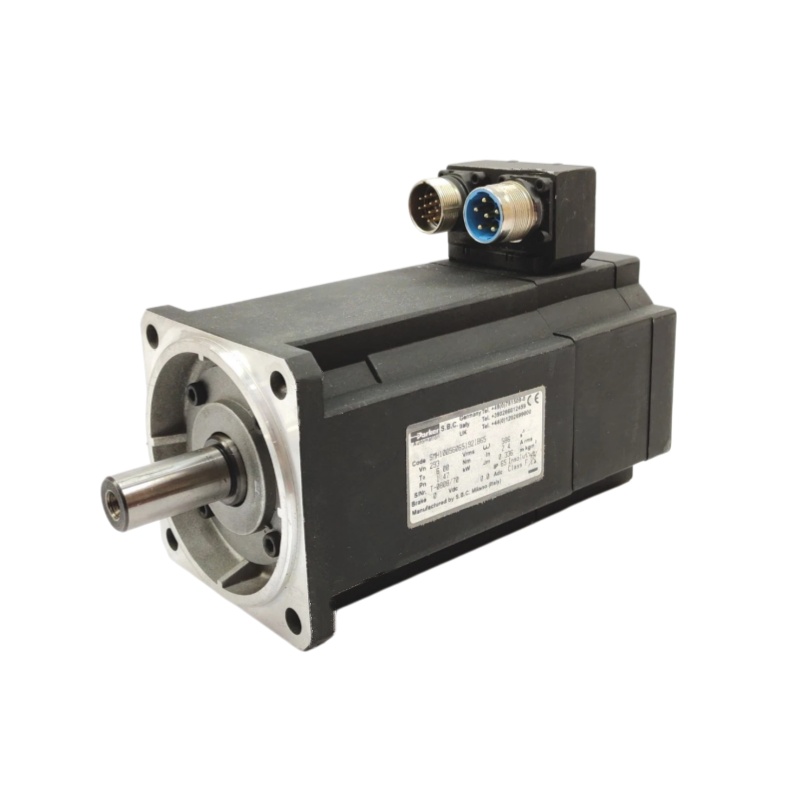

Parker SMH Motor
Description:
The Parker SMH Motor is a high performance brushless servo motor designed for applications requiring fast response high acceleration and low rotor inertia. Its permanent magnet synchronous design and salient pole technology provide high specific torque while maintaining a compact motor size. The SMH series is available in multiple frame sizes with different winding feedback shaft and connection configurations. It can be used in servo hydraulic pumps packaging machines robotics material handling factory automation and other demanding industrial applications.
share:
Parker SMH Motor
| Item | Technical Information |
|---|---|
| Brand | Parker |
| Product Series | SMH |
| Product Type | Brushless Servo Motor |
| Motor Type | Permanent Magnet Synchronous Servo Motor |
| Rotor Design | Surface Mounted Rare Earth Magnets |
| Number of Poles | 8 |
| Frame Sizes | 40 60 82 100 115 142 and 170 mm |
| Power Range | 0.1 to 9.4 kW |
| Torque Range | 0.19 to 60 Nm |
| Speed Range | 0 to 7500 rpm |
| Supply Voltage | 80 230 and 400 VAC |
| Cooling Method | Natural Ventilation |
| Protection Rating | IP64 and IP65 options |
| Shaft Type | Plain Keyed Shaft or Smooth Shaft Option |
| Feedback Options | Resolver Incremental Encoder and Absolute Encoder |
| Temperature Class | Class F |
| Mounting | Flange Mounting |
| Brake Option | Holding Brake Available |
| Inertia Option | Increased Inertia Available |
| Connection Options | Connectors Flying Cables and Terminal Box |
| Typical Applications | Servo Hydraulic Pumps Robotics Packaging Material Handling Factory Automation and Textile Machinery |
