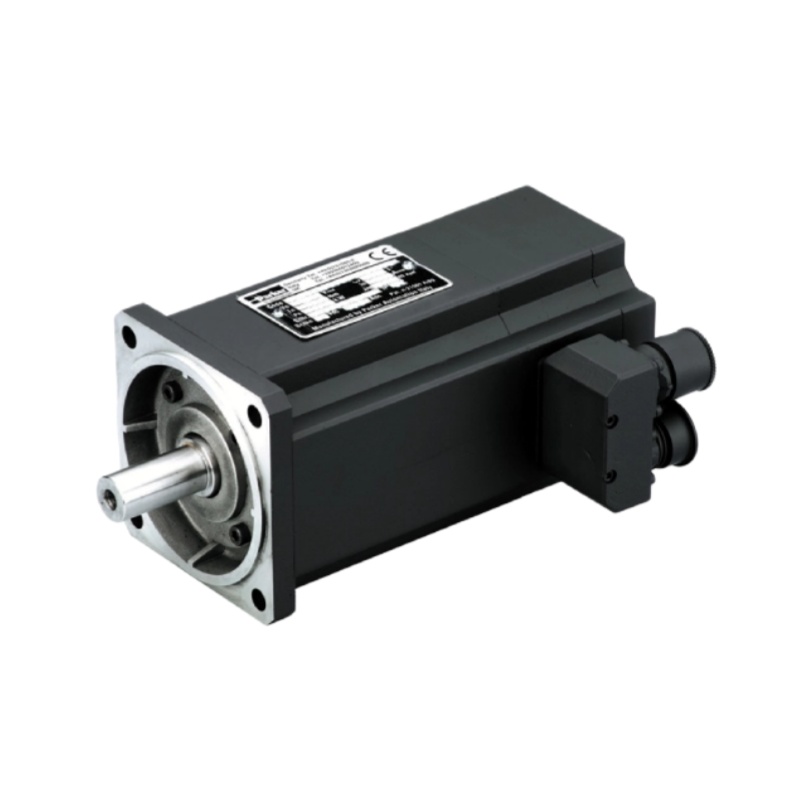

Parker SMB Motor
Description:
Parker SMB Series brushless servo motors are designed for high dynamic performance and low inertia applications. The series uses permanent magnet synchronous motor technology with rare earth magnets to provide high acceleration and excellent response. Parker SMB motors are suitable for packaging machines, material handling systems, factory automation, robotics, printing equipment, textile machines and servo hydraulic pump applications. The series offers multiple feedback options, customized windings and voltage configurations, and optional braking and increased inertia solutions.
share:
Parker SMB Motor
| Parameter | Specification |
|---|---|
| Product Series | Parker SMB |
| Product Type | Brushless Servo Motor |
| Motor Type | Permanent Magnet Synchronous Servomotor |
| Rotor Design | Rotor with Surface Rare Earth Magnets |
| Number of Poles | 8 |
| Power Range | 0.1 to 9.4 kW |
| Torque Range | 0.19 to 60 Nm |
| Speed Range | 0 to 7500 rpm |
| Mounting | Flange with Smooth Holes |
| Shaft End | Plain Keyed Shaft |
| Shaft Option | Plain Smooth Shaft |
| Cooling | Natural Ventilation |
| Protection Level | IP64 |
| Protection Option | IP65 |
| Feedback Options | Resolver Absolute Encoder Incremental Encoder |
| Thermal Protection | PTC |
| Voltage Supply | 80 230 400 VAC |
| Temperature Class | Class F |
| Connections | Rotatable Connectors Flying Cables Terminal Box |
| Options | Brake Second Shaft Increased Inertia |
| Applications | Packaging Material Handling Factory Automation Robotics Printing Textile Servo Hydraulic Pumps |
