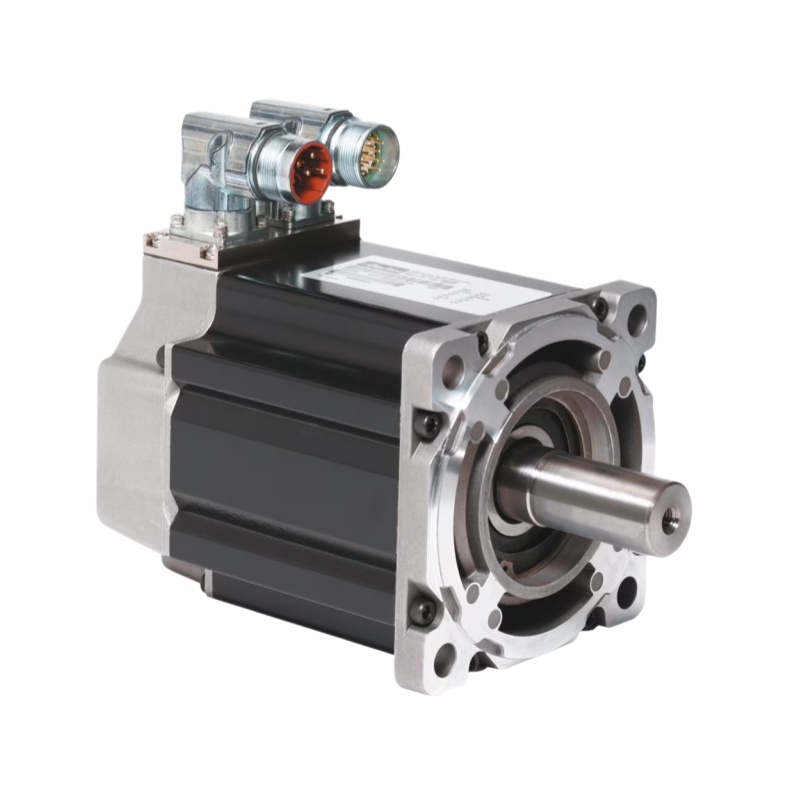

MPJ Motor
Description:
The Parker MPJ Motor is a high inertia brushless rotary servo motor designed for demanding motion control applications. As part of the MaxPlus J series, it provides 3 to 8 times the inertia of standard MPP motors, making it suitable for applications that require stable motion and high inertia performance. The MPJ motor features segmented core technology, high performance neodymium magnets, a potted stator design, thermistor protection and multiple feedback options.
share:
MPJ Motor
| Specification | Details |
|---|---|
| Product | MPJ Motor |
| Brand | Parker |
| Series | MPJ MaxPlus J |
| Motor Type | Brushless Rotary Servo Motor |
| Motor Design | High Inertia |
| Frame Sizes | 92, 100, 115, 142 |
| Construction | Brushless |
| Magnet Type | High Performance Neodymium Magnets |
| Stator Design | Potted Stator |
| Core Technology | Segmented Core Technology |
| Feedback Options | Resolver, Incremental Encoder, Absolute Encoder |
| Brake | Optional 24 V Failsafe Brake |
| Protection | IP64 Standard, IP65 Optional Shaft Seal |
| Connector | Rotatable Right Angle PS Style Connector |
| Protection Device | Thermistor |
| Application | High Performance Servo Systems |
| Custom Options | Shaft, Flange, Feedback Device, Connector and Winding Options |
