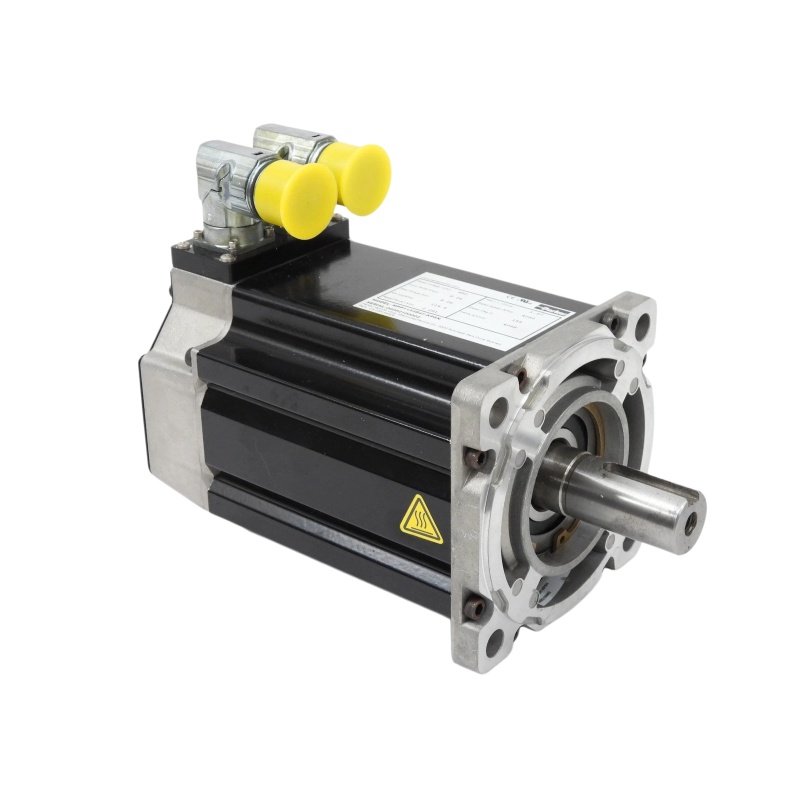

Parker MPP Motors
Description:
Parker MPP Motors are high performance brushless rotary servo motors designed for demanding motion control and industrial automation applications. The MPP MaxPlusPlus series uses eight pole segmented lamination technology to provide high torque in a compact motor package. Parker states that this technology can provide up to 40 percent higher torque per unit size than conventional winding designs. The potted stator design also improves thermal efficiency, while high energy neodymium magnets support rapid acceleration.
share:
Parker MPP Motors
| Parameter | Specification |
|---|---|
| Brand | Parker |
| Product Series | MPP |
| Product Type | Brushless Rotary Servo Motor |
| Product Name | Parker MPP MaxPlusPlus Servo Motor |
| Motor Technology | Eight pole segmented lamination technology |
| Construction | Brushless |
| Magnet Type | High energy neodymium magnets |
| Frame Sizes | 92, 100, 115, 142, 190, 230 and 270 mm |
| Continuous Stall Torque | Approximately 1.5 to 162 Nm depending on model |
| Peak Torque | Up to approximately 512 Nm depending on model |
| Rated Speed | Approximately 800 to 5000 rpm depending on model |
| Feedback Options | Encoder, resolver and absolute encoder options |
| Connector | Rotatable right angle connector options |
| Protection | IP64 standard, IP65 optional |
| Brake | Optional 24 V failsafe brake |
| Custom Options | Shaft, flange, feedback, connector and winding customization |
| Typical Applications | High performance servo systems, industrial automation, motion control and demanding positioning applications |
