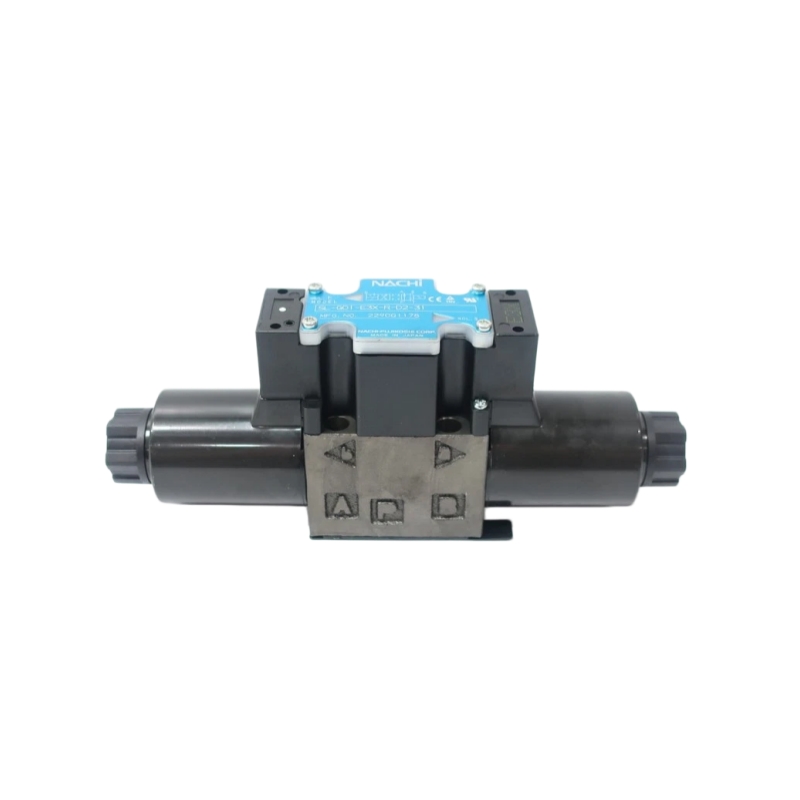

Nachi SL-GO1-E3X-R-D2-31 Hydraulic Directional Control Valve

Nachi SL-GO1-E3X-R-D2-31 Hydraulic Directional Control Valve

Description:

The Nachi SL-G01-E3X-R-D2-31 Hydraulic Directional Control Valve is a high-performance solenoid-operated directional valve designed to control the start, stop, and direction of hydraulic oil flow in industrial hydraulic systems. It is widely used in machinery requiring precise and reliable flow switching, such as injection molding machines, machine tools, and industrial automation equipment. Built with compact design and stable response characteristics, this valve ensures efficient hydraulic circuit control with low leakage and long service life.

share:

Nachi SL-GO1-E3X-R-D2-31 Hydraulic Directional Control Valve

Item Specification
Model SL-G01-E3X-R-D2-31
Valve Type Solenoid-operated directional control valve
Mounting Type Subplate mounting (CETOP 3 / NG6 standard)
Max Operating Pressure Up to 315 bar
Rated Flow Up to 80 L/min
Control Function 4/2, 4/3 directional control (spool type dependent)
Actuation Double solenoid (spring centered / detented options)
Voltage 12V DC / 24V DC / 110V AC / 220V AC (optional)
Fluid Type Mineral-based hydraulic oil
Viscosity Range 15–400 cSt
Fluid Temperature -20°C to +70°C
Ambient Temperature -20°C to +50°C
Leakage Low internal leakage design
Material High-strength cast iron / steel body
Installation Position Optional (horizontal preferred)
