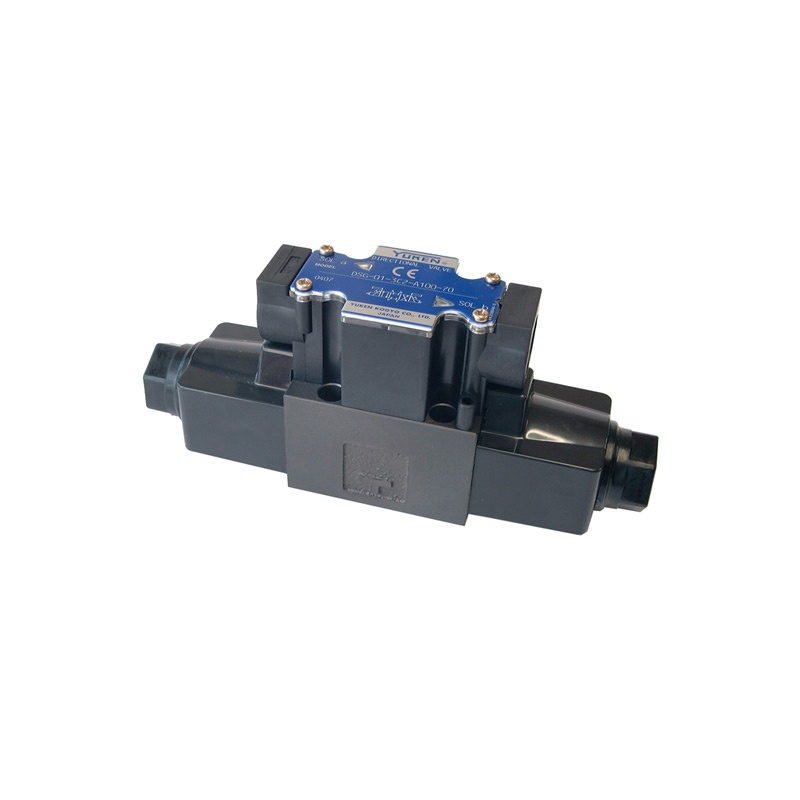

Yuken DSG-01 Series Solenoid Directional Valves
Description:
The Yuken DSG-01 Series Solenoid Directional Valve is a high-performance CETOP 03 / NG6 hydraulic directional control valve designed for precise switching of oil flow in hydraulic systems. It uses a wet-type solenoid structure to ensure stable operation, low pressure loss, and long service life.
share:
Yuken DSG-01 Series Solenoid Directional Valves
| Item | Specification |
|---|---|
| Model Series | Yuken DSG-01 |
| Mounting Type | Subplate mounting (CETOP 03 / NG6) |
| Valve Type | Solenoid operated directional spool valve |
| Function Type | 4/2, 4/3 way |
| Max Operating Pressure | 31.5 – 35 MPa (varies by model) |
| Max Flow Rate | Up to 100 L/min |
| Fluid | Mineral-based hydraulic oil |
| Viscosity Range | 20 – 400 mm²/s |
| Ambient Temperature | -15°C to +70°C |
| Fluid Temperature | -15°C to +60°C |
| Filtration Requirement | NAS 1638 Class 10 or better |
| Mounting Surface | ISO 4401 / CETOP 03 standard |
| Coil Voltage Options | 12V DC / 24V DC / 110V AC / 220V AC |
| Manual Override | Available (standard feature) |
| Response Time | Fast switching (wet solenoid design) |
